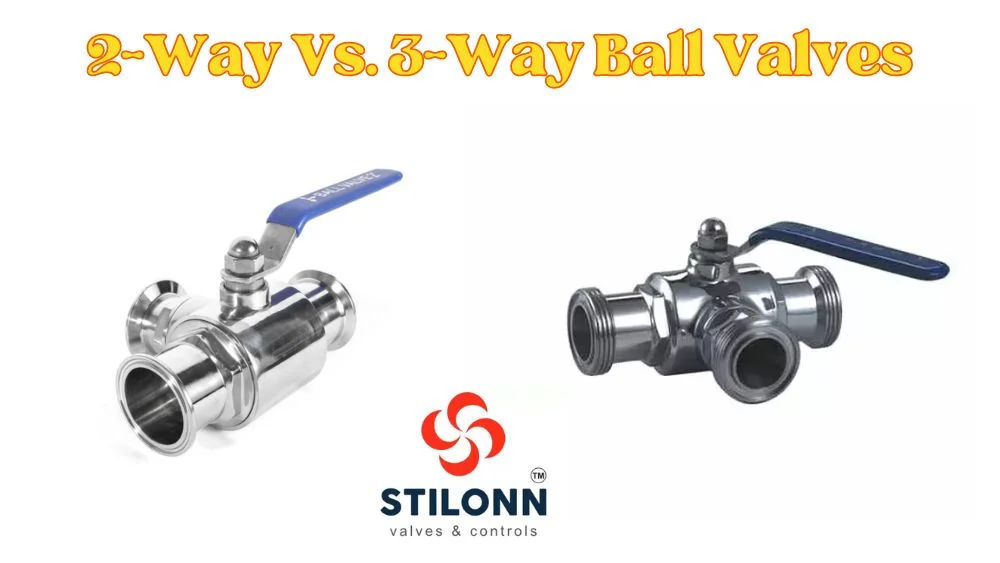

2-Way vs. 3-Way Ball Valves

Valves are the unsung heroes of fluid control – the silent operators that move vast volumes of liquid, gas, or slurry either on command or in response to critical system variables. Two of the most common valve types that are often compared and contrasted are the 2-way and 3-way ball valves. If you’re in an industry where precision fluid handling is a necessity, understanding the differences between these two valves is not just important – it’s crucial.

In this comprehensive guide, we’re going to take you through the intricate details of these two valves, breaking down their functionality, common applications, and the key considerations that can help you make the right choice for your specific fluid-handling needs.

The Basics of Ball Valves: What They Are

Before we start comparing, it’s essential to cover the groundwork on what exactly ball valves are:

  • 2-Way Ball Valves: The 2-way ball valve, also known as a shut-off or on/off ball valve, is one of the simplest types. It has two ports: an inlet and an outlet, and a 90-degree handle that you turn to open and close the valve.
  • 3-Way Ball Valves: Unlike their 2-way siblings, 3-way ball valves have an L-shaped or T-shaped bore design. They provide ports to mix or divert process media flow within a piping system, offering the capability to join one or two inlets to a single outlet, or vice versa.

The central ball within these valves can be designed in a variety of configurations to suit specific flow and pressure requirements.

Comparing the Flow-Path Options

The most significant difference between 2-way ball valves and 3-way ball valves lies in their flow pathways. While 2-way valves are pretty straightforward, 3-way valves add a level of complexity by providing mixed or diverted traffic options.

  • 2-Way Valves: In a 2-way valve, flow can move in one direction only, from inlet to outlet or vice versa. They are typically used in applications requiring a simple on/off operation.
  • 3-Way Valves: With a 3-way valve, you have mixed or diverted flow options. This means you can either combine the flow from two inlets to a single outlet or switch between two outlets using a single inlet. These valves are often used to bypass elements of a system, regulate flow, or mix different media.

Understanding Actuation and Operation

Valve operation is another key area of distinction between 2-way and 3-way ball valves. Here’s how they differ:

  • 2-Way Valves: The operation of 2-way valves is simple. You have a handle (usually a lever handle or a gear operator for larger valves) that you turn a quarter or half-turn to open or close the valve.
  • 3-Way Valves: For 3-way ball valves, the handle can be a bit more complex. Their operation could involve a series of quarter or half-turns to achieve the desired flow pattern, especially when it involves diverting flow.

Pressure and Temperature Limitations

Valves are designed to withstand specific pressure and temperature ranges. These limitations can affect the durability and safety of your system:

  • 2-Way Valves: Due to their simpler design, 2-way ball valves are often rated for higher pressures than their 3-way counterparts. This makes them suitable for more robust applications where pressure is a critical factor.
  • 3-Way Valves: 3-way ball valves typically operate at lower pressures than their 2-way counterparts. However, they offer the versatility of handling thermal expansion better and can accommodate moderate pressure differentials between the inlet and outlet ports in various flow configurations.

Common Applications and Industry Uses

Each type of valve is best suited for certain applications where its unique design features come into play.

  • 2-Way Valves: You’ll find 2-way ball valves in applications such as water treatment, chemical and petrochemical processing, HVAC systems, and general process control, where open/closed operations are sufficient.
  • 3-Way Valves: 3-way ball valves are often employed in mixing processes for gases and liquids, flow diversion, temperature modulation, and systems that require instrumentation or sample collection, where a mixture of media is required or where one medium must be substituted with another.

The Role of Versatility

Versatility in fluid control equipment is a sought-after quality. How do these two valves measure up?

  • 2-Way Valve Versatility: 2-way ball valves are extremely versatile for a range of fluids. They can handle large flow rates and high-pressure applications. Their simple operational design makes them a go-to for many industries.
  • 3-Way Valve Versatility: 3-way ball valves, on the other hand, are less versatile in terms of pressure but are much more versatile regarding the different flow configurations they can handle. Their ability to mix, combine, or divert flows makes them a popular choice for control applications.

Cost and Maintenance Considerations

Both initial investment and long-term maintenance costs are important to consider in any valve selection process.

  • Initial Cost: 3-way ball valves are typically more expensive than their 2-way counterparts due to the additional complexity in their design.
  • Maintenance: The maintenance costs for both valve types depend on multiple factors, including material quality, pressure and temperature conditions, and the frequency of use. Generally, 3-way ball valves with their more complex internals may require more frequent maintenance.

Material Selection and Durability

The materials used in valve manufacturing greatly influence its lifespan and suitability for certain mediums and conditions.

  • Common Materials: Valves can be made of a variety of materials including stainless steel, brass, PVC, and more exotic alloys for specialized applications.
  • Durability and Service Life: 3-way ball valves, being more complex, may have more parts prone to wear over time. However, material quality and proper maintenance practices significantly extend the service life of both types of valves.

Environmental Considerations

In some industries, especially those where toxic or hazardous substances are handled, environmental impact plays a significant role in valve selection.

  • Industry Standards: Compliance with industry standards, such as API, ASTM, ANSI, and ISO, is a critical factor in choosing the right valve for your environmental regulations.
  • Valve Design: Consider how the valve’s design affects environmental factors like fugitive emissions and fluid loss, and choose a design that minimizes these risks.

In Conclusion

Choosing between a 2-way and 3-way ball valve is not a one-size-fits-all decision. It requires a deep understanding of your system’s requirements, the application, and the environmental factors at play.

When making your decision, always consider factors such as:

  • The nature of the fluids you’ll be controlling
  • Pressures and temperatures the valve will be subjected to
  • The flow pattern required by your system
  • The long-term maintenance needs of the valve

Only by taking a comprehensive approach to these factors can you select a valve that not only operates efficiently but also contributes to the overall effectiveness and safety of your fluid control system.
