3 Way Ball Valve Dimensions, Hygienic Three way Ball Valves, Sanitary Three Way Valve, SS 3 Way Ball Valve

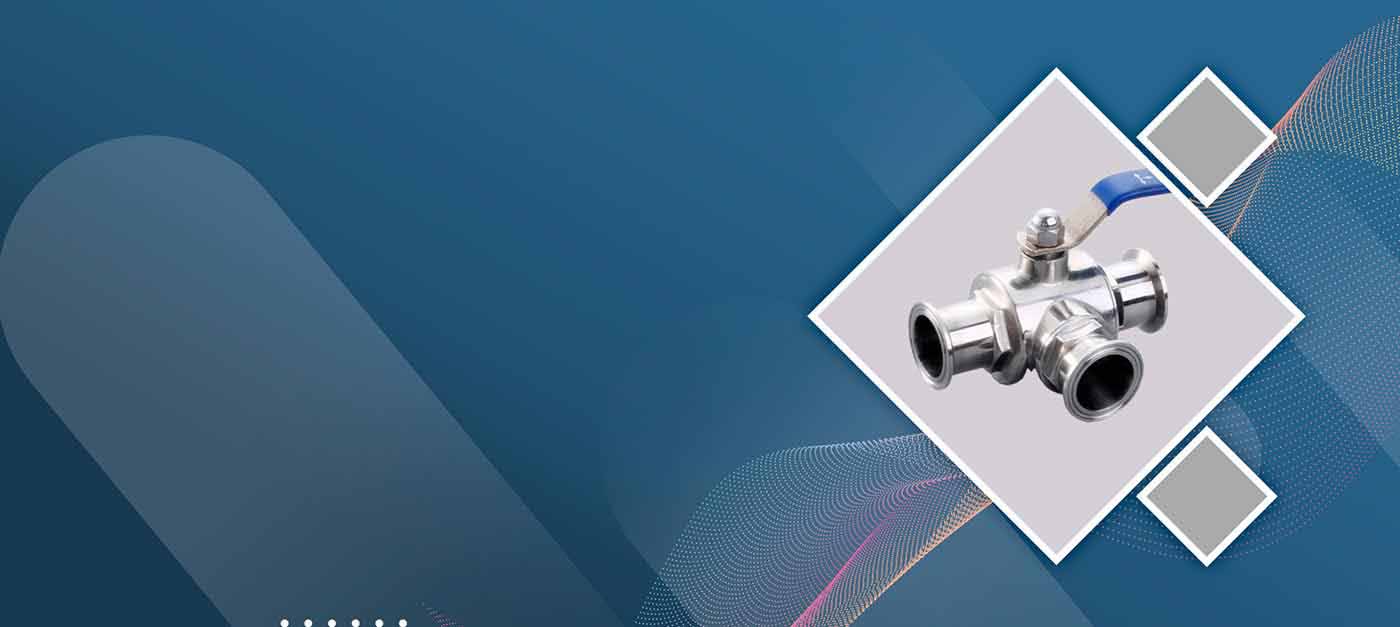

STILONN Valves & Controls Pvt Ltd is a renowned manufacturer of 3 Way Ball Valves Scr End, which is a high-alloy austenitic stainless steel with low carbon content. Stainless Steel 3 Way Ball Valves Scr End is known for excellent tensile & material strength and is offered in various dimensional specifications as required by the clients. We are involved in the present high-class series of SS 3 Way Ball Valves Scr End, developed by experts using advanced techniques and optimum quality material. To fit the requirements of our customers from various sectors, we are engaged in offering our customers our Stainless Steel 304 3-Way Ball Valves Scr End, which is intended for use instead of standard pipe when a plate or flow nozzle must be installed.
Table of Contents
- Three-way ball valve 4 seals with “T” Features
- Three-way ball valve 4 seals with “T” port Features
- Dimensions of Three-way ball valve 4 seals with “T”
- Dimensions of Three-way ball valve 4 seals with “T” port
- Surplus Stock & Special Offer On Sanitary Three Way Valves
- Hygienic Three Way Valves Supply Destination
- Sanitary Three Way Valves Export Destination Worldwide
These Stainless Steel 304L 3-Way Ball Valves Scr End has features like Resistance against corrosion, Ideal for acidic and alkaline environments, Ensure easy and quick installation of pipelines, Client centric product, Service-oriented product, Prompt manufacturing process, and more. With wide industrial experience, we are indulged in manufacturing and exporting a wide range of our Stainless Steel 316 3-Way Ball Valves Scr End, which are fabricated to close tolerances and excellent finishes. We have marked a distinct and dynamic position in the market by providing a high-quality array of these Stainless Steel 316L 3-Way Ball Valves Scr End, which are admired for their appealing look and easy installation.
Three-way ball valve 4 seals with “T” Features
- Drive : Inox lever
- Connection : ISO 228 female/female/female thread
- Flow : Full
- Material : Aisi 304L - 316L
- Measure : from 1/4” to 4”
- Seals : virgin P.T.F.E.
- Operating Temperature : -20°C +160°C
- Outer Finish : Polished
Three-way ball valve 4 seals with “T” port Features
- Drive : ISO 5211 - DIN 3337 flange for actuator
- Connection : ISO 228 female/female/female thread
- Flow : Full
- Material : Aisi 304L - 316L
- Measure : from 1/4” to 4”
- Seals : virgin P.T.F.E.
- Operating Temperature : -20°C +160°C
- Outer Finish : Polished
Dimensions of SS Three-way ball valve 4 seals with “T”
| G | DN | L | I | C | H | PN | Kg |
| 1/4″ | 12 | 72 | 16 | 110 | 60 | 40 | 0,91 |
| 3/8″ | 12 | 72 | 16 | 110 | 60 | 40 | 0,90 |
| 1/2″ | 15 | 82 | 18 | 110 | 65 | 40 | 1,20 |
| 3/4″ | 20 | 92 | 19 | 160 | 70 | 40 | 1,88 |
| 1″ | 25 | 102 | 20 | 160 | 80 | 40 | 2,50 |
| 1″1/4 | 32 | 118 | 20 | 190 | 95 | 40 | 4,42 |
| 1″1/2 | 40 | 134 | 20 | 190 | 110 | 40 | 6,68 |
| 2″ | 50 | 144 | 20 | 220 | 120 | 25 | 7,99 |
| 2″1/2 * | 65 | 160 | 22 | 285 | 130 | 25 | 9,84 |
| 3″ * | 80 | 200 | 26 | 310 | 145 | 16 | 20,30 |
| 4″ * | 100 | 240 | 26 | 310 | 160 | 16 | 32,75 |
| Pos. | Denomination | Pcs | Mat. |
| 1 | Body | 1 | AISI 304L – 316L |
| 2 | Ball | 1 | AISI 304L – 316L |
| 3 | Sleeves | 3 | AISI 304L – 316L |
| 4 | Stem | 1 | AISI 304L – 316L |
| 5 | Ball seals | 4 | PTFE |
| 6 | Sleeve seals | 3 | PTFE |
| 7 | Stem seal | 1 | PTFE |
| 8 | Stem seal | 1 | PTFE |
| 9 | Stem OR-seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 304L (303) |
| 11 | Nut | 1 | AISI 304L |
| 12 | Washer | 1 | AISI 304L |
| 13 | Lever | 1 | AISI 304L |
| 14 | Handle | 1 | Resina |
Dimensions of Three-way ball valve 4 seals with “T” port
| G | DN | L | I | H | R | S | PN | Kg | ISO-DIN | Ø a | b | Ø c x o | ? | d | e | f | viti | Nm |
| 1/4″ | 12 | 72 | 16 | 46,5 | 45 | 40 | 40 | 0,95 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 10 |
| 1/4″ | 12 | 72 | 16 | 46,5 | 45 | 40 | 40 | 1,01 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 10 |
| 3/8″ | 12 | 72 | 16 | 46,5 | 45 | 40 | 40 | 0,92 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 10 |
| 3/8″ | 12 | 72 | 16 | 46,5 | 45 | 40 | 40 | 0,96 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 10 |
| 1/2″ | 15 | 82 | 18 | 49 | 52 | 42 | 40 | 1,13 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 12 |
| 1/2″ | 15 | 82 | 18 | 49 | 52 | 42 | 40 | 1,27 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 12 |
| 3/4″ | 20 | 92 | 19 | 56,5 | 60 | 52 | 40 | 1,87 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 23 |
| 3/4″ | 20 | 92 | 19 | 56,5 | 60 | 52 | 40 | 1,93 | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 23 |
| 1″ | 25 | 102 | 20 | 61 | 70 | 60 | 40 | 2,49 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 25 |
| 1″ | 25 | 102 | 20 | 61 | 70 | 60 | 40 | 2,65 | F.05 | 65 | 12 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 25 |
| 1″1/4 | 32 | 118 | 20 | 81,5 | 85 | 75 | 40 | 4,38 | F.05 | 65 | 12 | 35×4 | 14 | 13 | 50 | 7 | M6x20 | 33 |
| 1″1/4 | 32 | 118 | 20 | 81,5 | 85 | 75 | 40 | 4,95 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 33 |
| 1″1/2 | 40 | 134 | 20 | 89 | 100 | 90 | 40 | 6,65 | F.05 | 65 | 12 | 35X4 | 14 | 13 | 50 | 7 | M6X20 | 40 |
| 1″1/2 | 40 | 134 | 20 | 89 | 100 | 90 | 40 | 6,82 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 40 |
| 2″ | 50 | 144 | 20 | 91,5 | 110 | 100 | 25 | 8,29 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 50 |
| 2″ | 50 | 144 | 20 | 91,5 | 110 | 100 | 25 | 8,70 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 50 |
| 2″1/2 ** | 65 | 160 | 22 | 101,5 | 123 | 95 | 25 | 9,86 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 60 |
| 2″1/2 ** | 65 | 160 | 22 | 101,5 | 123 | 95 | 25 | 10,25 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 60 |
| 3″ ** | 80 | 200 | 26 | 116 | 160 | 115 | 16 | 20,20 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 110 |
| 3″ ** | 80 | 200 | 26 | 116 | 160 | 115 | 16 | 20,70 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 110 |
| 4″ ** | 100 | 240 | 26 | 131 | 190 | 145 | 16 | 32,50 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 130 |
| 4″ ** | 100 | 240 | 26 | 131 | 190 | 145 | 16 | 33,00 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 130 |
| Pos. | Denomination | Pcs | Mat. |
| 1 | Body | 1 | AISI 304L – 316L |
| 2 | Ball | 1 | AISI 304L – 316L |
| 3 | Sleeves | 3 | AISI 304L – 316L |
| 4 | Stem | 1 | AISI 304L – 316L |
| 5 | Ball seals | 4 | PTFE |
| 6 | Sleeve seals | 3 | PTFE |
| 7 | Stem seal | 1 | PTFE |
| 8 | Stem seal | 1 | PTFE |
| 9 | Stem OR-seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 304L (303) |
| 11 | Locknut | 1 | AISI 303 |
