Inline Sight Glass

Monitoring is critical when it comes to industrial processes involving liquids, gasses, or rapidly changing conditions. That’s precisely where an inline sight glass comes into play—a simple yet vital tool allowing operators to peek inside their system without interruption. Below, we delve into what makes this instrument a small but mighty stalwart in process monitoring.

What is an Inline Sight Glass and Its Purpose

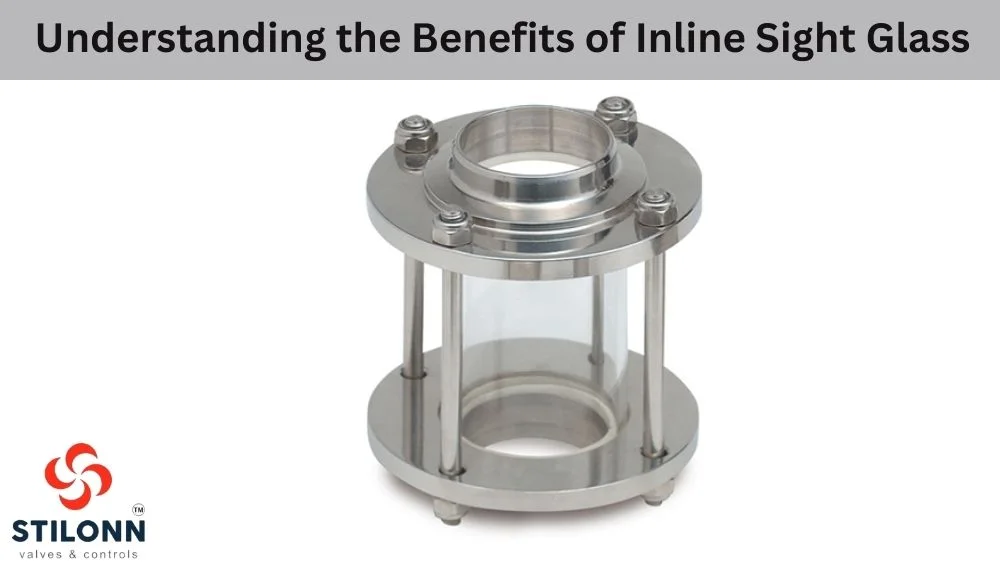

An inline sight glass is a window, usually made from high-strength glass or plastic, letting you observe fluids or gasses moving through pipelines. Incorporated directly into the piping system, this glass is particularly essential where visibility of process conditions is necessary for quality or safety considerations.

Benefits of Using Inline Sight Glass

Enhanced Visibility in Process Monitoring

With an inline sight glass, you have eyes inside your process, allowing you to monitor colour, clarity, and flow rate at a glance. This improved visibility is indispensable for troubleshooting issues, ensuring product consistency, and verifying conditions like the absence of air bubbles, which could signify a leak.

Improved Safety and Efficiency

Real-time monitoring inherently improves safety by revealing potential problems before they grow dire. Easily spotting irregularities through the sight glass can help prevent spills, leaks, or dangerous reactions, reducing the risk to personnel and infrastructure.

Easy Maintenance and Cleaning

Thanks to their simple design, inline sight glasses require minimal maintenance. Many are built for easy disassembly, making routine cleaning less of a task and promoting the overall hygienic operation—a big plus, especially in food processing or pharmaceutical applications.

Cost Savings and Waste Reduction

Sight glasses can save money and materials by enabling swift issue identification and process verification. Timely detection of process variations means adjustments can be made quickly, reducing waste and keeping production lines running smoothly and cost-efficiently.

Applications of Inline Sight Glass

Food and Beverage Industry

From dairy to brewery pipelines, sight glasses help ensure consistency and sanitation, providing a window to monitor product transitions, confirm cleaning cycles, and oversee flow rates in producing consumable goods.

Pharmaceutical and Biotech Industry

In industries where contamination can compromise entire batches, inline sight glasses offer assurance that processes remain uncontaminated and products stay within specification throughout synthesis or packaging.

Chemical Industry

Chemical reactions can be observed safely and managed appropriately, ensuring the safety of plant workers. They also play a vital role in quality control, ensuring mixtures meet the required standards.

Oil and Gas Industry

In these often high-temperature and high-pressure environments, sight glasses enable the visual inspection of fuels and by-products, contributing to safe operations and maintenance across a network of pipes and distillation columns.

Factors to Consider When Choosing an Inline Sight Glass

Material Compatibility

Sight glasses must resist the processed material, avoiding any reaction that could cloud the glass or compromise the pipeline’s integrity.

Pressure and Temperature Ratings

Ensure the sight glass can withstand the pressure and temperatures in your system without risk of failure.

Connection Type

Confirm whether the sight glass fits the pipeline configuration—threaded, flanged, or clamp connection type.

Transparency and Clarity

High-quality glass should retain clarity over time, resisting scratches and etching that could impair visibility.

Installation and Maintenance Tips

Proper Installation Guidelines

Follow manufacturer instructions closely to install the sight glass correctly and secure a perfect seal. Incorrect installation could lead to leaks or even glass failure.

Regular Cleaning and Inspection

Adhere to a strict cleaning and inspection schedule to maintain the sight glass’s clarity and reliability. Replace gaskets, seals, and the glass according to the manufacturer’s recommendations.

Conclusion

The small yet significant inline sight glass plays an outsized role in many industries, offering a simple solution for safe and effective process monitoring. Remembering its essential benefits and considering its selection and maintenance can streamline operations and contribute to the impeccable management of industrial processes. Whether in the oil fields or on the food production floor, an inline sight glass is a clear choice for controlling complex systems.
