Sanitary sight glasses are commonly used to monitor fluid flow in various food, pharmaceutical, and chemical industries. They are designed to provide a clear view of the process inside a vessel or pipeline without physical access. However, the sanitary sight glass’s effectiveness largely depends on the material selected, which impacts its durability, resistance to corrosion, and performance. This article will explore the factors to consider when selecting the appropriate material for sanitary sight glass.
What is Sanitary Sight Glass?

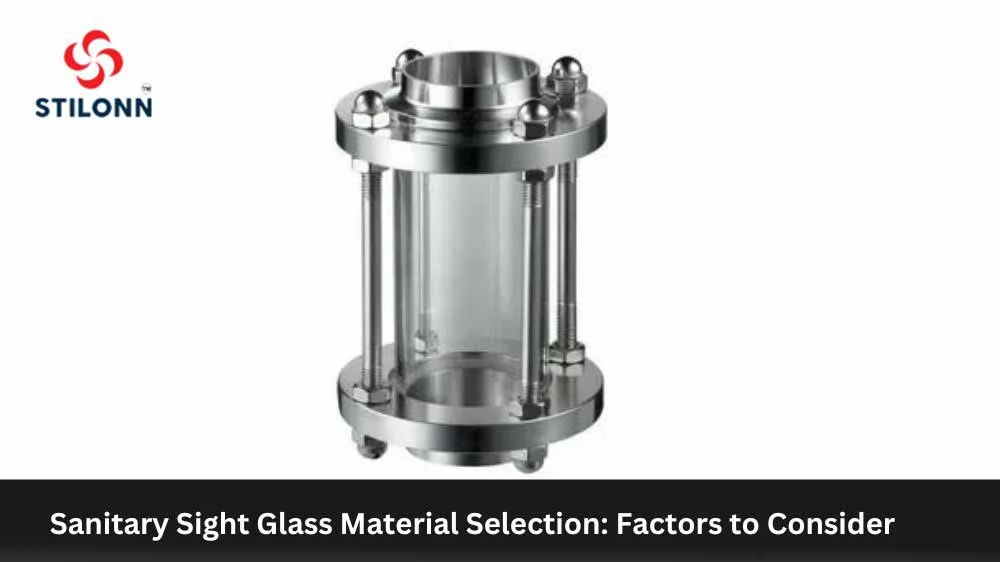

A sanitary sight glass is a special type of view port installed in pipes and vessels to allow visual inspection of the product flowing through them. It consists of two stainless steel flanges that join together, creating an opening where the operator can look through and see what is inside. The discs are usually made from round, forged, hollow, or hex bars, depending on the application requirements. They have high tensile strength, which ensures their durability even in extreme operating conditions.
Factors to Consider Material Selection of Sanitary Sight Glass
Chemical Resistance:
One of the primary factors to consider when selecting a sight glass material is the level of chemical resistance. Will the material provide the required resistance to the chemicals to which it will be exposed? This is especially crucial in the pharmaceuticals and chemical industries. Stainless steel is the most common material in sight glasses due to its high chemical resistance and durability. However, other materials, such as borosilicate glass and polycarbonate, offer varying degrees of chemical resistance.
Temperature Resistance:
The appropriate sight glass material must also have temperature resistance. For instance, a high-temperature application that involves frequent temperature cycling will require a material that can withstand harsh conditions. If the application operates under extreme temperatures, the material selected should have excellent thermal conductivity to prevent thermal shock. In such situations, borosilicate glass is a preferred option due to its ability to withstand fluctuations in temperature.
Cleaning Requirements:
Cleanability is a crucial consideration for the material chosen for sanitary sight glasses. The chosen material should be easy to clean to prevent contamination, reduce downtime, and enhance hygiene. Stainless steel is popular for this purpose since it is easy to clean and sanitize and has a smooth surface that prevents bacteria build-up.
Pressure Management:
The material used in constructing a sight glass must meet the standard pressure rating for its intended use. For instance, applications that involve high pressures will require a material with exceptional tensile strength and corrosion resistance. Tempered borosilicate glass provides a significant advantage since it can withstand high-pressure levels.
Regulatory Compliance:
The final factor to consider is whether the sight glass material complies with regulatory requirements for a specific industry. Every industry has specific standards regarding the materials used in equipment and machinery. Thus, selecting a material that conforms to those standards is essential. Stainless steel and borosilicate glass are the most commonly used materials that meet industry standards for sanitary applications.
Conclusion:
In conclusion, selecting a sight glass material requires careful consideration of chemical and temperature resistance, cleaning requirements, pressure management, and regulatory compliance. The appropriate material choice will increase the durability, reliability, and performance of the sight glass, enhancing the safety of operators and facilitating better-quality products. It is essential to consult a reputable supplier or manufacturer to assist in selecting the most appropriate material for a specific application.
