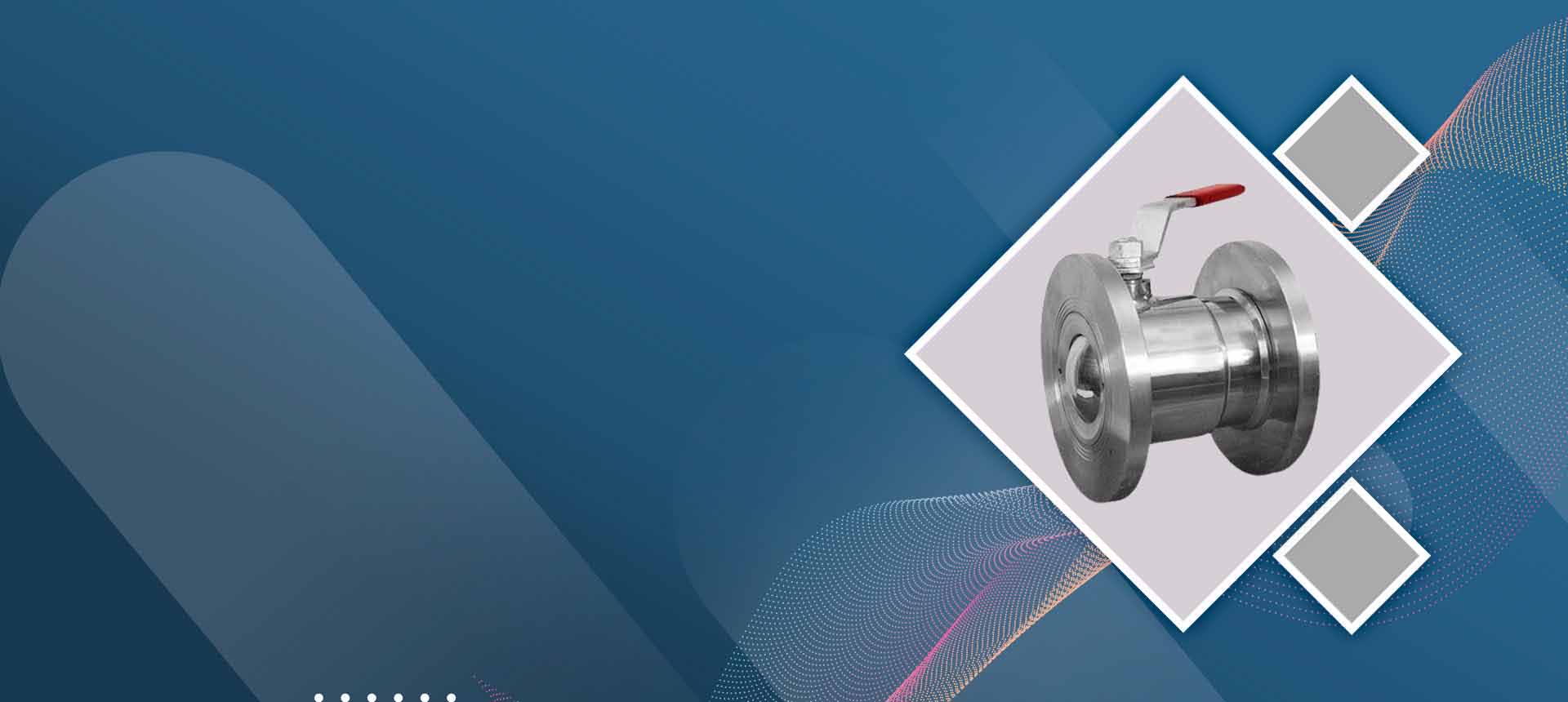

Stilonn is a renowned manufacturer and distributor of Flush Bottom Ball Valves, which possess high tensile strength. Made in compliance to the prevailing industrial norms and guidelines, these Stainless Steel Flush Bottom Ball Valves are affordably priced. These Stainless Steel 304 Flush Bottom Ball Valves are used in under similar service conditions in heat transfer process equipment like boilers, super heaters, heat exchangers, condensers, General engineering and Process Instrumentation. The impeccable functioning of Stainless Steel 316 Flush Bottom Ball Valves at high pressure and temperature conditions demonstrates its quality approval as per AISI, MSS, BS and API quality standards. Available in a variety of connection ends, sizes, pressure sustainable range and temperature variations, these Stainless Steel 304L Flush Bottom Ball Valves suffice every sort of industrial piping requirement.
Pos. | Denomination | Pcs | Mat. |
1 | Body | 1 | AISI 316L |
2 | Ball | 1 | AISI 316L |
3 | Sleeve | 1 | AISI 316L |
4 | Stem | 1 | AISI 316L |
5 | Ball seals | 2 | PTFE |
6 | Sleeve seal | 1 | PTFE |
7 | Stem seal | 1 | PTFE |
8 | Stem seal | 1 | PTFE |
9 | Stem OR-seal | 1 | FKM |
10 | Register ring | 1 | AISI 304L (303) |
11 | Locknut | 1 | AISI 303 |
12 | Sleeve bolts | 6 | AISI 304L |
13 | Lever | 1 | AISI 304L |
14 | Handle | 1 | DUROPLAST (PF) |
15 | Lever bolts | 1 | AISI 304L |
16 | Stop lever bolts | 2 | AISI 304L |
17 | Nuts | 2 | AISI 304L |
18 | Counterflange | 1 | AISI 316L |
19 | Flanges seal | 1 | PTFE |
20 | Flanges O-Ring | 1 | EPDM |
DN Ball Valve | L | M | I | N | P | Ø R | Ø T | Ø A | B | Ø C | Ø D x n° | Ø E (Flange DN) | S | F | Ø G | Ø H x n° | K | U | V | PN | Kg |
40 | 122 | 77 | 36 | 45 | 126 | 84 | 75 | 150 | 16 | 110 | 18 x 4 | 165 | 17 | 20 | 125 | 18 x 4 | 100 | 240 | 178 | 16 | 8,5 |
50 | 127 | 82 | 37 | 45 | 132 | 94 | 89 | 165 | 18 | 125 | 18 x 4 | 185 | 17 | 20 | 145 | 18 x 4 | 115 | 240 | 185 | 16 | 11,1 |
65 | 149 | 96 | 40 | 53 | 156 | 119 | 110 | 185 | 18 | 145 | 18 x 4 | 200 | 17,5 | 20 | 160 | 18 x 8 | 140 | 270 | 215 | 16 | 15,5 |
80 | 166 | 101 | 40 | 65 | 167 | 138 | 120 | 200 | 18 | 160 | 18 x 8 | 220 | 19,5 | 22 | 180 | 18 x 8 | 155 | 300 | 225 | 16 | 19,95 |
100 | 186 | 111 | 47 | 75 | 181 | 165 | 140 | 220 | 20 | 180 | 18 x 8 | 250 | 27,5 | 22 | 210 | 18 x 8 | 185 | 325 | 245 | 16 | 28,8 |
125 | 245 | 150 | 60,5 | 95 | 205 | 190 | 153 | 250 | 22 | 210 | 18 x 8 | 285 | 26,5 | 24 | 240 | 22 x 8 | 220 | 483 | 286 | 16 | 43,9 |
ISO | Ø a | b | Ø c x o | ? | d | Ø e | Ø f | SCREWS for ACTUATOR | Nm | ||||||||||||
DN40 – F 05 | 65 | 12 | 35 x 3 | 14 | 15 | 50 | 7 | M6 x 16 | 25 | ||||||||||||
DN50 – F 05 | 65 | 12 | 35 x 3 | 14 | 15 | 50 | 7 | M6 x 16 | 30 | ||||||||||||
DN65 – F 07 | 90 | 12 | 55 x 4 | 17 | 17 | 70 | 9 | M8 x 20 | 45 | ||||||||||||
DN80 – F 07 | 90 | 12 | 55 x 4 | 17 | 17 | 70 | 9 | M8 x 20 | 70 | ||||||||||||
DN100 – F 07 | 90 | 12 | 55 x 4 | 17 | 17 | 70 | 9 | M8 x 20 | 80 | ||||||||||||
DN125 – F 10 | 120 | 12 | 70 x 4 | 22 | 19 | 102 | 11 | M10 x 25 | 130 |
Pos. | Denomination | Pcs | Mat. |
1 | Body | 1 | AISI 316L |
2 | Ball | 1 | AISI 316L |
3 | Sleeve | 1 | AISI 316L |
3a | Sleeve flange | 1 | AISI 316L |
4 | Stem | 1 | AISI 316L |
5 | Ball seals | 2 | PTFE |
6 | Sleeve seal | 1 | PTFE |
7 | Stem seal | 1 | PTFE |
8 | Stem seal | 1 | PTFE |
9 | Stem OR-seal | 1 | FKM |
10 | Register ring | 1 | AISI 304L (303) |
11 | Locknut | 1 | AISI 303 |
12 | Sleeve bolts | 6 | AISI 304L |
13 | Lever | 1 | AISI 304L |
14 | Handle | 1 | DUROPLAST (PF) |
15 | Lever bolts | 1 | AISI 304L |
16 | Stop lever bolts | 2 | AISI 304L |
17 | Nuts | 2 | AISI 304L |
18 | Counterflange | 1 | AISI 316L |
19 | Flanges seal | 1 | PTFE |
20 | Flanges O-Ring | 1 | EPDM |
