Contamination in a food processing line doesn’t announce itself. It accumulates in dead zones, valve cavities, and surface scratches where bacteria multiply between production runs. Hygienic piping systems and food-grade valves prevent contamination occurrences and decide whether a facility passes FDA, 3-A, or EHEDG audits and whether product reaches retail without a recall. Fast quarter-turn action, hygienic sealing design and CIP-friendly surfaces have made sanitary butterfly valves the industry standard in dairy, beverage, food packaging and liquid processing. The right valve selection influences food safety, quality and regulation. This article explains to engineers and plant managers why food processing plants employ sanitary butterfly valves.

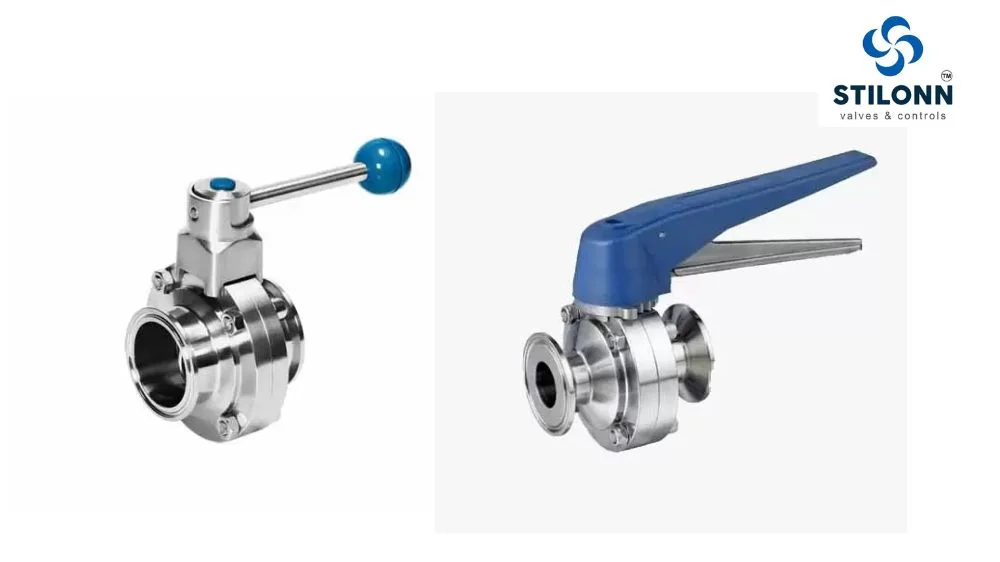

What Are Sanitary Butterfly Valves?
A sanitary butterfly valve is a quarter-turn hygienic valve that regulates or isolates fluid flow in food-grade and clean-process piping systems. The assembly consists of 4 main components: the valve body, the rotating disc, the seat seal, and either a manual handle or an automated actuator for remote or pneumatic control. What separates sanitary butterfly valves from standard industrial valves is their internal surface design. Standard industrial valves carry threads, crevices, and surface roughness that trap food particles and allow bacterial biofilm to establish between cleaning cycles. Sanitary butterfly valves carry smooth internal faces, hygienic seat designs that leave no dead volumes, and electropolished or mirror-finish surfaces rated to Ra 0.8 µm or below. Bodies and discs use stainless steel 304 for standard service or stainless steel 316L for applications carrying chlorinated CIP solutions or acidic products where the higher molybdenum content of 316L matters for corrosion life.
How Sanitary Butterfly Valves Work
A 90-degree handle or actuator rotation moves the disc from fully open to fully closed in under 1 second. Open position aligns the disc face parallel to flow, dropping pressure loss across the valve to 0.02 to 0.05 bar at standard process velocities. Closed position seats the disc against a food-grade EPDM or silicone seat, creating a bubble-tight seal rated to 10 bar in standard DN25 to DN200 configurations. That fast operation makes sanitary butterfly valves the correct choice for automated filling lines, CIP sequencing, and any process that cycles between flow and no-flow conditions hundreds of times per shift. Pneumatic and electric actuators from 0 to 100% open in under 500 milliseconds, which allows integration with PLC-controlled processing systems without slowing line speed.
Why Sanitary Butterfly Valves Are Essential for Food Processing
Prevent Contamination
The hygienic design leaves no internal cavities where product accumulates between cycles. Ra 0.8 µm surface finish on stainless steel doesn’t support bacterial adhesion biofilm requires surface roughness above Ra 1.6 µm to establish a stable colony. A sanitary butterfly valve running 8-hour production cycles followed by 30-minute CIP rinses maintains that surface condition across 5 to 7 years of continuous service when correctly specified.
Easy Cleaning and Sterilization
CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems clean a sanitary butterfly valve in-line without disassembly. The open disc position exposes the full internal bore to cleaning solution flow. Seat designs with no undercuts or shadow zones allow CIP solutions at 0.5% to 2% NaOH or HNO3 concentration to contact all surfaces at velocities above 1.5 m/s the minimum for turbulent flow cleaning. SIP steam penetration at 121°C for 20-minute cycles completes sterilization without raising valve body temperatures above safe limits for food-grade seat elastomers.
Efficient Flow Control
Quarter-turn opening and closing cuts cycle time on automated filling and dosing systems. A valve that needs 3 to 5 seconds to open or close limits line throughput; a sanitary butterfly valve opens in under 0.5 seconds with a pneumatic actuator, supporting 200 to 400 dosing cycles per hour on high-speed filling lines without the valve becoming the production bottleneck.
Corrosion Resistance
316L stainless steel withstands CIP chemicals including sodium hydroxide, nitric acid, peracetic acid, and chlorinated alkaline solutions at concentrations and temperatures used in food plant cleaning. A valve body that corrodes under CIP conditions releases metal ions into the product stream, a food safety failure that requires line shutdown and investigation. 316L construction prevents that failure mode across the valve’s full service life.
Regulatory Compliance
Food plants operating in the US, EU, and export markets need valves certified to applicable hygiene standards. 3-A Sanitary Standards cover dairy applications. FDA 21 CFR 177 covers elastomer and seal material compliance for food contact. EHEDG certification covers European dairy, food, and pharmaceutical fluid handling. Our sanitary butterfly valves carry ISO, DIN, IDF, and SMS compliance documentation, giving quality teams the audit trail they need without chasing third-party certification for each valve size.
Cost-Effective and Durable
A correctly specified sanitary butterfly valve in 316L with EPDM seat runs 5 to 7 years in continuous dairy or beverage service without seat replacement. Total cost of ownership versus a ball valve of equivalent specification runs 20 to 30% lower over a 5-year period because the seat replacement interval is longer and the valve body requires no periodic internal inspection or reworking.
Applications of Sanitary Butterfly Valves in Food Processing
Dairy Processing Plants
Milk reception, pasteurization, cream separation, yogurt processing, and cheese production all use sanitary butterfly valves at 4 to 8 positions per processing line. The valves cycle from open to closed up to 400 times per 8-hour shift in automated milk reception stations a duty cycle that rules out slower-acting valve types.
Beverage Industry
Juice processing, soft drink filling, brewing, and bottled water production specify sanitary butterfly valves for tank outlet control, CIP isolation, and product routing between tanks and filling heads. Brewing applications demand EPDM seat compatibility with caustic and acidic CIP chemicals used in post-production cleaning.
Food Manufacturing Plants
Liquid ingredient transfer, sauce and condiment processing, and edible liquid blending use sanitary butterfly valves in DN50 to DN200 sizes for main flow control and CIP-sequenced line isolation. Viscous products above 1,000 cP require seat designs with higher closing torque specifications confirm actuation sizing against product viscosity at operating temperature.
Edible Oil Processing
Refined vegetable oil, olive oil, and specialty fat processing need hygienic valves that handle elevated temperature service up to 90°C without seat deformation. Silicone seat material handles oil service at those temperatures; EPDM degrades above 80°C in oil contact and shouldn’t be specified for high-temperature oil lines.
Packaging and Filling Systems
Automated food packaging lines cycle sanitary butterfly valves hundreds of times per hour for portion control, batch dosing, and line flushing. Pneumatic actuators with position feedback allow PLC systems to confirm full open and full close at each cycle, supporting the product traceability and dosing accuracy that food packaging regulations require.
Benefits of Using Stainless Steel Sanitary Butterfly Valves
- Hygienic Ra 0.8 µm surface finish prevents biofilm adhesion between cleaning cycles
- Quarter-turn operation opens from fully closed to fully open in under 0.5 seconds with pneumatic actuation
- 316L construction withstands CIP chemicals at working concentrations without corrosion-product contamination
- 10 bar bubble-tight shutoff in standard sizes from DN25 to DN200
- Compatible with pneumatic, electric, and manual actuation for full automation flexibility
- 5 to 7-year seat life in continuous dairy and beverage service at correct operating conditions
How to Choose the Right Sanitary Butterfly Valve
Valve selection begins with process fluid. Before size and pressure rating, acidic materials below pH 4, high-temperature service above 80°C, and CIP chemical compatibility affect seat material and body grade. These 5 variables determine selection. EPDM for conventional CIP with caustic and acid, silicone for high-temperature oil service, and PTFE for aggressive chemical compatibility depend on food product type. Pressure rating matches valve working pressure to line design pressure at operating temperature. CIP chemicals with peracetic acid or strong chlorine require a 316L body selection. Pneumatic actuation replaces manual handles on valves cycling more than 50 times every shift or installed in an inaccessible to operators during production.
| Quick Valve Selection Checklist✓ Identify the process fluid: pH, viscosity, temperature at valve position✓ Confirm CIP chemical type: NaOH, HNO3, peracetic acid, or chlorinated alkaline✓ Select seat material: EPDM (standard CIP), silicone (high-temp oil), PTFE (chemical resistance)✓ Select body grade: 316L for CIP with peracetic or high-chlorine; 304 for standard dairy/beverage✓ Confirm pressure rating: standard butterfly valves cover up to 10 bar at DN25 to DN200✓ Specify actuation: manual for <50 cycles/shift; pneumatic or electric above that threshold✓ Confirm certification requirement: 3-A (dairy), FDA (food contact), EHEDG (EU food/pharma) |
How to Choose the Right Butterfly Valve Manufacturer
We at STILONN Valves & Controls manufacture sanitary butterfly valves to ISO, DIN, IDF, and SMS standards from our facility founded in 2014. Each valve is pressure tested, tested for seat integrity and measured for surface roughness before delivery. DN10 to DN200 product range in 304 and 316L with manual, pneumatic and electronic actuation 7 seat elastomer materials. Material traceability from mill cert to finished valve verifies alloy compliance on every order. Technical support includes valve selection, actuator sizing, CIP compatibility review and application-specific design problems.
Conclusion
Sanitary butterfly valves keep food processing lines running at the intersection of hygiene, efficiency, and regulatory compliance. They prevent bacterial contamination through hygienic surface design, support CIP without disassembly, operate fast enough for automated filling systems, and outlast standard industrial valves in food-grade service environments. Dairy, beverage, food manufacturing, edible oil, and packaging applications all depend on valves that meet 3-A, FDA, and EHEDG standards without compromising on flow performance or service life. Choose premium sanitary butterfly valves from a manufacturer whose product carries the certifications, traceable materials, and application engineering support your food processing operation requires.
