A contaminated batch in a pharmaceutical or food manufacturing factory leads to expensive production shutdowns and regulatory problems. Standard plumbing components are simply too much for these demanding sanitary conditions. This is why it is vital to invest in high quality sanitary valves. Protect product purity, inhibit bacterial development and survive extensive clean-in-place (CIP) sanitation cycles without degradation. Sterility of fluid handling lines is a non-negotiable rule. This guide makes it easier to determine the specific valve types your facility needs to maintain total process control.

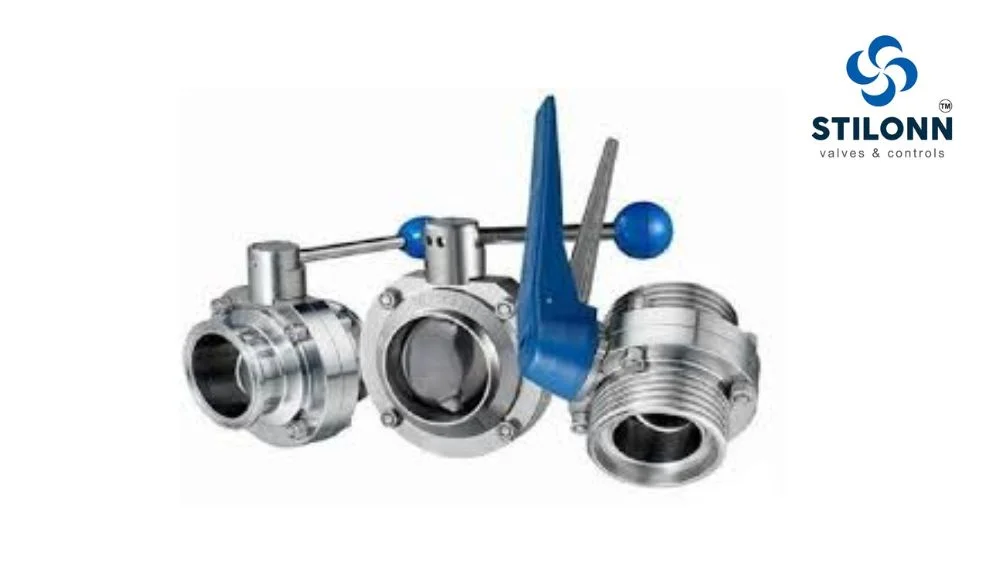

What Are Sanitary Valves?
Sanitary valves are specialized flow control devices engineered for hygienic processing systems in food, beverage, pharmaceutical, dairy, and cosmetic production. They differ from standard industrial valves in 4 specific ways. Internal surfaces carry Ra 0.8 µm or better electropolished finish that prevents biofilm adhesion and product residue accumulation. Elastomer seals use FDA 21 CFR 177-compliant materials EPDM, silicone, or PTFE that don’t extract chemical components into the product stream. Body and disc construction uses stainless steel 304 for standard service or 316L for applications with aggressive CIP chemicals or acidic product contact. Design geometry eliminates dead legs, undercuts, and crevices where bacteria establish between cleaning cycles. Compliance with FDA, 3-A Sanitary Standards, EHEDG, and GMP requirements appears in the product documentation not as a post-purchase claim but as a factory-tested, certified characteristic of each valve design.
Types of Sanitary Valves
Sanitary Ball Valves
Ball valves provide rapid quarter-turn shutoff using a rotating, bored sphere. Their full-bore design matches the connecting pipe’s diameter to minimize pressure drops, support pigging lines, and reliably handle standard CIP steam temperatures.
Sanitary Butterfly Valves
Butterfly valves use a revolving disk to save space for flow control in big diameter lines. These tiny components can readily be adapted to automated pneumatic or electric actuators, making them perfect for high cycle filling systems and sequencing.
Sanitary Diaphragm Valves
The diaphragm valve has a flexible membrane that provides a total separation of the actuation mechanism from the product. This complete separation avoids contamination and is the rigorous standard for high-purity pharmaceutical and bioreactor lines.
Sanitary Check Valves
Check valves are passive devices that prevent dangerous backflow without actuators or control signals. This is where spring-loaded systems at pump and tank inlets come into play, stopping contaminated fluid from flowing upstream and protecting process sterility with no operational expense.
Sanitary Sampling Valves
Sampling valves offer a secure, sterile extraction point to sample fluids without breaking line containment. Utilizing spring-loaded plungers and USP Class VI elastomers, they prevent ambient contamination during critical quality control checks.
Sanitary Pressure Relief Valves
Pressure relief valves automatically discharge excess pressure to protect process loops, vessels, and heat exchangers from overpressure. They safely vent lines during high-temperature thermal expansion or CIP steaming, preventing catastrophic structural equipment failures.
Key Benefits of Sanitary Valves
Prevent Contamination
Ra 0.8 µm internal surfaces don’t support biofilm establishment under standard CIP cleaning protocols. No crevices, threads, or dead legs give bacteria a refuge between cleaning cycles. A sanitary valve designed and certified to EHEDG guidelines passes cleanability validation testing that standard valves fail.
Easy Cleaning and Sterilization
CIP systems clean sanitary valves in-line at open position, pushing cleaning solution at 1.5 m/s minimum through all internal surfaces. SIP steam at 121°C for 20 minutes sterilizes the valve to pharmaceutical sterility assurance levels without disassembly. Total CIP cycle time per valve position runs 20 to 40 minutes including rinse no manual cleaning or valve removal required.
Excellent Corrosion Resistance
316L construction withstands daily CIP cycles using sodium hydroxide at 2%, nitric acid at 1%, and peracetic acid at 0.3% the standard chemical concentrations in dairy, beverage, and pharmaceutical plant CIP programs without surface corrosion or metallic contamination entering the product stream.
High Durability and Reliability
EPDM seats in standard dairy service last 5 to 7 years at 500 to 800 cycles per day. 316L bodies carry no time-limited corrosion life in standard food plant environments. A correctly specified sanitary valve runs its full design life without replacement intervention beyond scheduled seat inspections.
Regulatory Compliance
3-A, FDA, EHEDG, and ISO compliance documentation ships with every valve. Quality teams present that documentation to auditors without requesting it separately from the manufacturer. That documentation trail covers material traceability from mill certificate through finished valve testing.
Industrial Uses of Sanitary Valves
Food and Beverage Industry
Juice processing, beverage filling, sauce manufacturing, and ingredient dosing systems use sanitary ball and butterfly valves for flow control, CIP isolation, and automated production sequencing. High-speed filling lines require fast-acting pneumatic actuation on butterfly valves to maintain line throughput above 200 fills per minute.
Pharmaceutical Industry
Sterile water for injection (WFI), purified water, and product transfer in pharmaceutical plants use diaphragm and sampling valves at every sterile boundary point. Zero-dead-leg valve designs prevent product holdup that would fail sterility testing in FDA-inspected manufacturing environments.
Dairy Industry
Milk reception, pasteurization, cream separation, cheese production, and whey processing use sanitary butterfly and ball valves at 6 to 12 positions per processing train. 3-A certification on all valve components satisfies dairy plant audit requirements across US, EU, and export markets.
Biotechnology and Healthcare
Bioreactor feed and harvest lines, cell culture media transfer, and buffer preparation systems in biotech manufacturing require diaphragm valves with USP Class VI elastomers and documented biocompatibility testing. Process pressures run 2 to 6 bar in these applications with strict low-extractable requirements on all wetted materials.
Cosmetics Industry
Cream, lotion, shampoo, and personal care product manufacturing use sanitary valves in heated jacketed vessels and transfer lines where product temperature runs 60°C to 80°C. Silicone seats handle those temperatures in oil-phase and emulsion processing lines where EPDM would soften and release particulates.
How to Choose the Right Sanitary Valve
6 variables determine the correct sanitary valve for an application. Fluid type sets the elastomer requirement: EPDM for standard CIP, PTFE for aggressive chemicals, silicone for high-temperature oil and cream processing. Pressure and temperature ratings must cover both operating and CIP conditions CIP temperatures reach 85°C in dairy service and 121°C for steam sterilization. Material grade selection between 304 and 316L follows the CIP chemical profile and product pH. Cleaning requirements determine whether CIP-in-place or manual cleaning applies. Actuation method matches the cycle frequency: above 50 cycles per shift, pneumatic actuation protects operator safety and line efficiency. Compliance certification must match the regulatory environment 3-A for dairy, EHEDG for European food and pharma, FDA for US food contact.
| Quick Sanitary Valve Selection Checklist✓ Identify fluid: pH, viscosity, operating temperature, and sterility requirement✓ Confirm CIP chemical: NaOH, HNO3, peracetic acid, or chlorinated alkaline✓ Select seat material: EPDM (standard), PTFE (chemical resistance), silicone (high-temp oil/cream)✓ Select body grade: 316L for peracetic or high-chlorine CIP; 304 for standard dairy/beverage✓ Specify valve type: ball (full bore, low Dp), butterfly (high cycle, compact), diaphragm (pharma sterile)✓ Confirm actuation: manual (<50 cycles/shift), pneumatic or electric (above that threshold)✓ Verify certification: 3-A (dairy), EHEDG (EU food/pharma), FDA 21 CFR 177 (food contact materials) |
Common Mistakes to Avoid While Selecting Sanitary Valves
- Choosing the wrong valve type: ball valves on high-cycle automated lines wear seats faster than butterfly valve equivalents at the same cycle count. Match valve type to cycle duty, not just line size
- Ignoring hygienic certifications: a valve without 3-A or EHEDG documentation fails audits regardless of its physical design quality certifications are not optional in regulated food and pharmaceutical facilities
- Selecting incompatible materials: specifying EPDM seats on lines running peracetic acid above 0.5% concentration causes seat swelling and failure within 3 to 6 months of service confirm elastomer chemical resistance before ordering
- Overlooking cleaning requirements: valves without CIP-in-place capability require manual disassembly for each cleaning cycle, adding 20 to 45 minutes per valve per shift to cleaning labor cost
- Not considering automation needs: manual butterfly valves on lines cycling more than 100 times per shift create operator fatigue and inconsistent closing torque pneumatic actuation eliminates both problems at a cost of $80 to $200 per valve position
How to Choose the Right Sanitary Valve Manufacturer
We manufacture sanitary valves across 6 product families butterfly, ball, check, diaphragm, sampling, and pressure relief from our facility certified to ISO, DIN, IDF, and SMS standards. Every valve undergoes pressure testing, surface roughness measurement, and CIP compatibility verification before leaving the production floor. Material traceability from incoming stainless steel coil through finished valve carries full mill certificate documentation. Customization covers special face-to-face dimensions, non-standard connection types, and application-specific seat elastomer formulations. Technical support responds to application questions on valve selection, CIP compatibility, and actuator sizing with specific answers based on process data not catalogue defaults.
Conclusion
Sanitary valves in food, beverage, dairy, pharmaceutical, biotech, and cosmetics processing plants work harder than any other valve type in industrial service. They must survive hundreds of daily cycles, aggressive CIP chemicals, and audit-proof regulatory certification. Ball, butterfly, diaphragm, check, sampling, and pressure relief valves serve specialized applications. At design, choosing the proper kind, material grade, seat elastomer, and actuation mechanism influences whether the valve lasts 5–7 years or requires repair within its first year. Buy superior sanitary valves from an ISO-certified manufacturer with multi-product range capability and technical support to help you specify before ordering.
