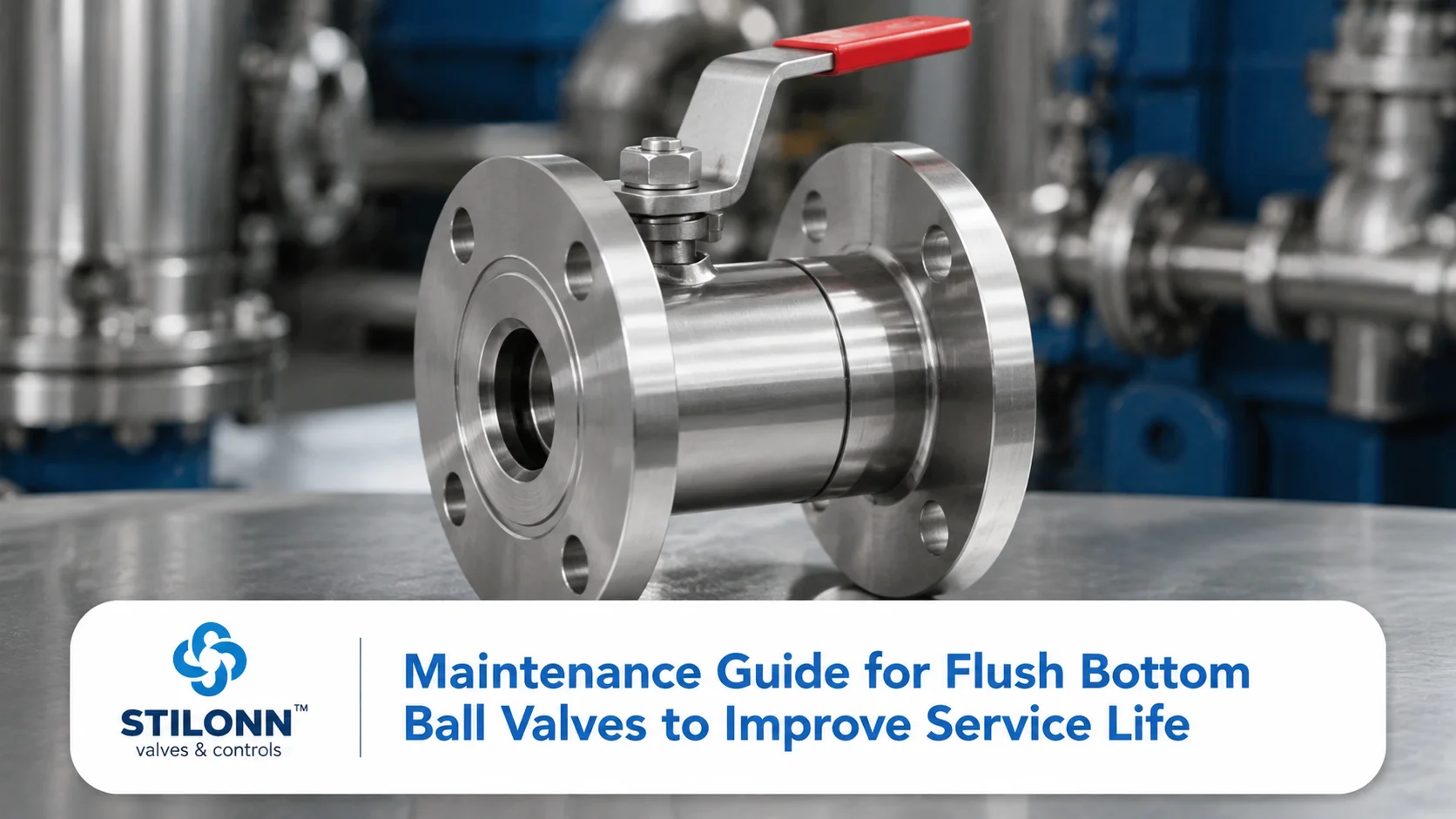

Flush Bottom Ball Valves fit perfectly flush with tank bottoms to eliminate dead space and ensure complete drainage. Flush bottom ball valves solve this by sitting flush with the tank floor, so process industries handling paints, pharmaceuticals, and food-grade liquids rely on them for complete drainage and minimal product retention. That flush design only holds up if the valve is maintained on schedule.
Regular flush bottom ball valve check avoids worn seats and stiff stems from producing catastrophic leaks, blocked valves, unscheduled downtime, costly cleanups, or discarded batches, eventually increasing equipment service life.
Understanding the Design of Flush Bottom Ball Valves
Mounted directly to a tank’s bottom outlet, these valves open and close with a quarter-turn ball that sits level with the vessel’s internal floor. No cavity, no dead leg; the media drains straight through without pooling against valve internals. That geometry is exactly why maintenance can’t be an afterthought: any wear on the ball or seat interrupts the flush seal and defeats the purpose of the design.
Main Components Requiring Regular Attention
Three areas carry most of the maintenance load. The ball and seat assembly forms the primary seal and wears fastest under abrasive or particulate-heavy media. Stem and sealing components packing, O-rings, thrust washers control leak-tightness at the actuation point. Body and end connections hold the pressure boundary and need periodic checks for gasket integrity and bolt torque.
Why Preventive Maintenance Is Essential for Flush Bottom Ball Valves
A leaking flush bottom valve causes unscheduled shutdowns, which in turn compromise process safety, product yield and batch continuity. Preventive maintenance is a must to maintain stems rotating smoothly and seals tight. The inspection timetable should be based on intensity of operation, not generic calendars, from every quarter for abrasive slurries to every 6 months for clean fluids. Keeping a record of each inspection, torque reading, and part replacement develops essential maintenance logs that show wear trends, allowing you to identify potential failure before a leak causes an emergency shutdown in the middle of a batch.
Routine Inspection, Cleaning, and Component Maintenance
Reliable operation comes from combining three habits: inspecting on schedule, cleaning thoroughly, and lubricating correctly. Skip any one of the three, and the other two lose most of their value.
Visual and Operational Inspection
Check for corrosion and leaks around the joints of the valve body. Cycle the valve to see whether it sticks. Look for scoring, flat spots, and early stiffening on the seat.
Cleaning procedures
Fully compatible chemicals with elastomer sealing for the elimination of internal residue build-up. Clean thoroughly to prevent cross-contamination between product processing runs.
Lubrication and Component Care
Top up the lubricant required to allow the stem to move freely. Make sure the packing compression is correct. An early change made the seals more durable, decreasing wear and stopping leaks.
Common Maintenance Issues and Their Solutions
Leakage Around the Valve
Most leaks trace back to worn seats, degraded packing, or loose body bolting. Replace the seat if scoring is visible, retorque the packing gland to spec, and recheck bolt torque against the manufacturer’s pattern before assuming a bigger repair is needed.
Difficult Valve Operation
Stiff operation usually means debris trapped between the ball and seat, or a stem that’s lost lubrication. Flush the cavity and reapply lubricant before considering the seat itself as the problem.
Internal Wear and Corrosion
Pitting or discoloration on the ball surface signals incompatible media exposure or coating breakdown. Catching this early during routine inspection rather than after a leak lets you plan a seat replacement instead of an emergency valve swap.
Factors That Affect the Service Life of Flush Bottom Ball Valves
Process Media Compatibility
Corrosive or abrasive fluids accelerate seat and ball wear regardless of how well the valve is maintained otherwise. Matching valve materials to the process media upfront reduces the maintenance burden significantly.
Operating Pressure and Temperature
Running outside rated pressure or temperature limits stresses seals faster than normal service predicts. Staying within the manufacturer’s limits keeps wear rates consistent and predictable.
Operating Frequency
A valve cycled dozens of times per shift wears differently than one cycled twice a week. High-frequency service warrants tighter inspection intervals and closer tracking of seat condition.
Installation Quality
Poor alignment during installation puts uneven load on the seat from day one. Correct alignment and proper torque during commissioning prevent premature wear that no amount of later maintenance can fully reverse.
When to Repair or Replace Flush Bottom Ball Valves
Indicators for Repair
Minor seal wear, a single degraded seat, or packing that’s lost compression are all straightforward repairs using replaceable internal components; no need to pull the whole valve.
Indicators for Replacement
Severe body damage, corrosion that’s compromised the pressure boundary, or repeated operational failures after repair point to replacement. At that stage, continued repair costs more over time than a new valve.
Conclusion
Routine maintenance is what keeps flush bottom ball valves performing at the level their design promises. Inspection, cleaning, lubrication, and timely replacement of worn components together cut unplanned downtime, protect product quality, and lower total maintenance spend over the valve’s working life. Building a preventive maintenance strategy around these habits pays off every time a tank drains cleanly on schedule.
