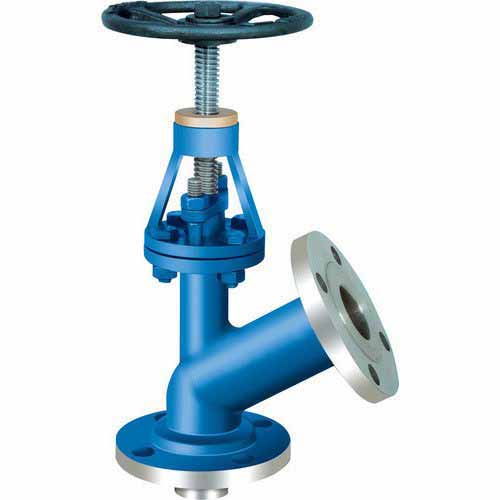

STILONN Valves & Controls Pvt Ltd is a prominent maker and trader of hygienic flush bottom valves in Pune. Sanitary Flush Bottom Valve are designed to optimize process hygiene. They have a short face-to-face dimension and can be easily flushed from the top with CIP/SIP liquids. Hygienic flush bottom Valve offer high performance, reliability, excellent cleanability and repeatable accuracy across a wide dimension of uses. These Valves feature an easy-to-clean body design that eliminates trapped product particles and bacteria in hard-to-reach areas; smooth surfaces minimize bacteria build-up and facilitate cleaning procedures. Their dead legless design further prevents excessive liquid stagnation points within the Valve, which enables efficient CIP/SIP cleaning operations.
Sanitary Flush Bottom Valve are used in a different of uses including food and beverage, dairy, biopharmaceuticals, breweries, cosmetics, and more. These Valve can be used with different media such as gases and liquids. They are well-suited for processes requiring consistent CIP/SIP cleaning cycles to ensure maximum hygiene standards. Hygienic Flush Bottom Valves supply the same benefits and features that sanitary flush bottom valves offer but are designed for harsher process circumstances. They feature a longer face-to-face dimension, making them suitable for high-pressure systems requiring tight shutoff capabilities. Sanitary Flush Bottom Valves also feature an easy-to-clean body design that prevents product particles from becoming trapped in hard-to-reach areas.
In sizes from 1/2″ through 4″ with tube ID design to provide unobstructed flow and better drainage. Pressure ratings up to 900 psi Virgin Teflon cavity filler ISO 5211 actuator mounting flange (optional) Designed for simple maintenance with in-line repairable feature Screwed end or tube weld ends Available as manual or actuated (pneumatic) valve Stainless Steel Materials – Types 304, 316, and “L Grades”.
SIZE | A | B | C | Dø (BSP) | Eø | øF PCD | GX4 | øI | S | A1 | B1 | F1 |
1/2” | 110 | 65 | 70 | 1/2” | 25/35 | 42 | M5 | 8 | 5 | 141 | 145 | 65 |
3/4” | 115 | 71 | 80 | 3/4“ | 35 | 42 | M5 | 10 | 7 | 141 | 150 | 65 |
1” | 115 | 78 | 88 | 1“ | 50.5 | 50 | M6 | 10 | 7 | 169 | 155 | 65 |
1 1/2” | 175 | 102 | 114 | 1 1/2“ | 50.5 | 50 | M6 | 12 | 9 | 169 | 175 | 65 |
2” | 210 | 110 | 127 | 2“ | 64 | 50 | M6 | 12 | 9 | 197 | 205 | 80 |
2 1/2” | 250 | 115 | 151 | 2 1/2“ | 77.5 | 70 | M8 | 20 | 12 | 197 | 250 | 80 |
3” | 300 | 180 | 196 | 3“ | 91 | 70 | M8 | 24 | 16 | 233 | 350 | 122 |
4” | 340 | 195 | 240 | 4” | 119 | 70 | M8 | 28 | 20 | 272 | 375 | 122 |
