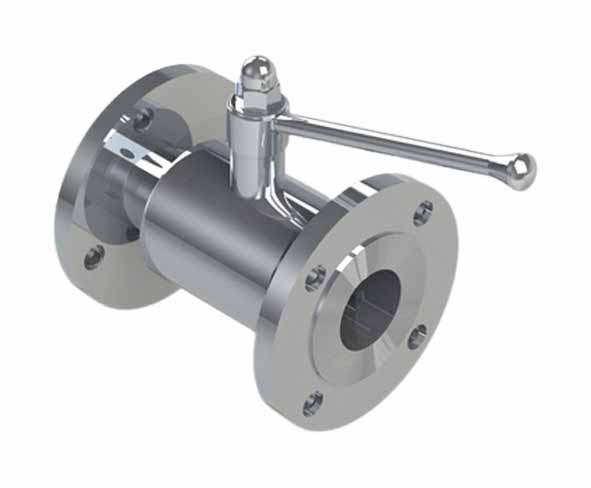

Flange End Ball Valves

Flange Ball Valve, Flange End, Flange End Ball Valve, Hygienic Flange End Ball Valves, Flange Type Ball Valve, Flanged Valve.

Stilonn is a renowned manufacturer and trader of Flange End Ball Valves, which are manufactured using the best quality components and implementing the latest technologies. Additionally, we can also offer these Stainless Steel Flange End Ball Valves in various customized options as per client requirements at a very reasonable price. The fitting of our Stainless Steel 304 Flange End Ball Valves is so well designed that they can be adjusted with any type of connectives. For further quality assurance, our team of quality controllers checks our entire range of these Stainless Steel 316 Flange End Ball Valves on different parameters in compliance with international and national quality standards.

Table of Contents

Flange End Ball Valves

Our professional-quality auditors help us engage in the manufacture and supply of premium–quality Stainless Steel 304L Flange End Ball Valves, which are made using high-quality at our modern manufacturing unit and are available to clients in various lengths and thicknesses. Our Stainless Steel 316L Flange End Ball Valves have features like Dimensional accuracy, Lightweight, Can withstand high temperature and pressure applications, Corrosion resistance, Chemically inert, Smooth finish, and more. These SS 304 Flange End Ball Valves are used in various industrial applications and are available in various sizes and materials. We ensure the consistent performance and durability of these SS 316 Flange End Ball Valves. In post-production, we make these SS 304L Flange End Ball Valves by passing a quality check so as to ensure their aptness.

Hygienic Flange End Ball Valves Features

Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids. 3-piece construction allows end connections to be permanently fitted to the pipe, so the valve body can be removed enabling replacement of seals without disturbing pipework.

Flange End Ball Valves with Lever Features

  • Drive : Inox lever
  • Connection : revolving threaded flanges UNI EN 1092-1:2003
  • Flow : Full
  • Material : Aisi 304 - 316
  • Measure : from DN 10 to DN 100
  • Seals : virgin P.T.F.E.
  • Operating Temperature : -20°C +160°C
  • Outer Finish : Polished
  • Standards : ANSI 150 flanges, ANSI 300 flanges
  • Seals made of : P.T.F.E. with glass, P.T.F.E. with carbographite, High-molecular weight polyethylene .

Flange End Ball Valves with Flange for Actuator Features

  • Drive : ISO 5211 - DIN 3337 flange for actuator
  • Connection : revolving threaded flanges UNI EN 1092-1:2003
  • Flow : Full
  • Material : Aisi 304 -316
  • Measure : from DN 10 to DN 100
  • Seals : virgin P.T.F.E.
  • Operating Temperature : -20°C +160°C
  • Outer Finish : Polished
  • Seals made of : P.T.F.E. with glass, P.T.F.E. with carbographite.

Dimensions of Stainless Steel Flange End Ball Valves with Lever

Lever Flange End Ball Valves Dimension Diagram

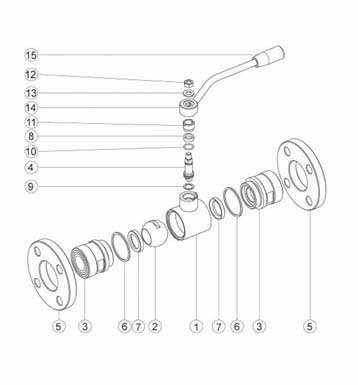

Flange Actuator Flange End Ball Valves Parts Diagram
DN L C H D B R A n° x F PN Kg
10 110 125 70 90 12 30 60 4×14 40 1,57
15 115 125 75 95 12 35 65 4×14 40 1,80
20 120 125 80 105 14 42 75 4×14 40 2,55
25 125 170 100 115 14 51 85 4×14 40 3,45
32 130 170 110 140 16 63 100 4×18 40 5,10
40 140 240 120 150 16 75 110 4×18 40 6,45
50 150 240 130 165 18 89 125 4×18 40 8,90
65 170 260 145 185 18 110 145 4×18 16 13,00
65 170 260 145 185 20 110 145 8×18 25 –
80 180 300 160 200 18 120 160 8×18 16 16,10
80 180 300 160 200 24 120 160 8×18 25 –
100 190 330 180 220 20 140 180 8×18 16 22,70
100 190 330 180 235 24 140 190 8×22 25 –
125 200 330 180 250 22 153 210 8×18 16 –
Pos. Denomination Pcs Mat.
1 Body 1 AISI 304L – 316L
2 Ball 1 AISI 304L – 316L
3 Sleeves 2 AISI 304L – 316L
4 Stem 1 AISI 304L – 316L
5 Flanges 2 AISI 304L – 316L – Aq
6 Ball seals 2 PTFE
7 Sleeve seals 2 PTFE
8 Stem seal 1 PTFE
9 Stem seal 1 PTFE
10 Stem OR-seal 1 FKM
11 Register ring 1 AISI 304L (303)
12 Nut 1 AISI 304L
13 Washer 1 AISI 304L
14 Lever 1 AISI 304L
15 Handle 1 Resina

Dimensions of Flange End Ball Valves with Flange for Actuator

FLANGE ACTUATOR FLANGE END BALL VALVES DIMENSION DIAGRAM

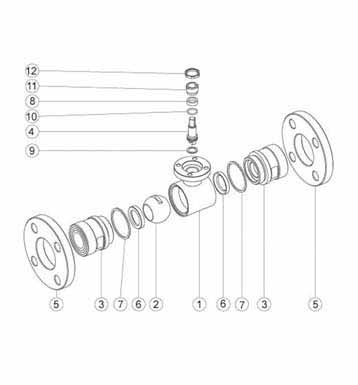

Flange Actuator Flange End Ball Valves Parts Diagram
DN L H D BB R A n° x F PN Kg ISO-DIN Ø a b Ø c x o ? d e f n° 4 bolts Nm
10 ** 110 39 90 12 30 60 4 x 14 40 1,60 F.03 46 9 25×3 9 8 36 6 M5x16 5
10 ** 110 39 90 12 30 60 4 x 14 40 1,65 F.04 54 9 30×3 11 10 42 6 M5x16 5
15 ** 115 41.5 95 12 35 65 4 x 14 40 1,80 F.03 46 9 25×3 9 8 36 6 M5x16 8
15 ** 115 41.5 95 12 35 65 4 x 14 40 1,83 F.04 54 9 30×3 11 10 42 6 M5x16 8
20 ** 120 45 105 14 42 75 4 x 14 40 2,53 F.03 46 9 25×3 9 8 36 6 M5x16 12
20 ** 120 45 105 14 42 75 4 x 14 40 2,65 F.04 54 9 30×3 11 10 42 6 M5x16 12
25 ** 125 51.5 115 14 51 85 4 x 14 40 3,33 F.04 54 9 30×3 11 10 42 6 M5x16 15
25 ** 125 51.5 115 14 51 85 4 x 14 40 3,45 F.05 65 9 35×3 14 13 50 7 M6x16 15
32 ** 130 56.5 140 16 63 100 4 x 18 40 4,98 F.04 54 9 30×3 11 10 42 6 M5x16 18
32 ** 130 56.5 140 16 63 100 4 x 18 40 5,04 F.05 65 9 35×3 14 13 50 7 M6X16 18
40 140 76 150 16 75 110 4 x 18 40 6,35 F.05 65 12 35×4 14 13 50 7 M6x20 25
40 140 76 150 16 75 110 4 x 18 40 6,52 F.07 90 12 55×4 17 15 70 9 M8x20 25
50 150 84 165 18 89 125 4 x 18 40 8,90 F.05 65 12 35×4 14 13 50 7 M6x20 30
50 150 84 165 18 89 125 4 x 18 40 9,15 F.07 90 12 55×4 17 15 70 9 M8x20 30
65 170 94.5 185 18 110 145 4 x 18 16 13,96 F.07 90 12 55×4 17 15 70 9 M8x20 45
65 170 94.5 185 18 110 145 4 x 18 16 14,46 F.10 125 12 70×4 22 18 102 11 M10x25 45
65 170 94.5 185 20 110 145 8 x 18 25 – F.07 90 12 55×4 17 15 70 9 M8x20 45
65 170 94.5 185 20 110 145 8 x 18 25 – F.10 125 12 70×4 22 18 102 11 M10x25 45
80 180 106 200 18 120 160 8 x 18 16 16,10 F.07 90 12 55×4 17 15 70 9 M8x20 70
80 180 106 200 18 120 160 8 x 18 16 16,60 F.10 125 12 70×4 22 18 102 11 M10x25 70
80 180 106 200 24 120 160 8 x 18 25 – F.07 90 12 55×4 17 15 70 9 M8x20 70
80 180 106 200 24 120 160 8 x 18 25 – F.10 125 12 70×4 22 18 102 11 M10x25 70
100 190 120 220 20 140 180 8 x 18 16 22,00 F.07 90 12 55×4 17 15 70 9 M8x20 80
100 190 120 220 20 140 180 8 x 18 16 22,50 F.10 125 12 70×4 22 18 102 11 M10x25 80
100 190 120 235 24 140 190 8 x 22 25 – F.07 90 12 55×4 17 15 70 9 M8x20 80
100 190 120 235 24 140 190 8 x 22 25 – F.10 125 12 70×4 22 18 102 11 M10x25 80
125 Reduced 100 200 120 250 22 153 210 8 x 18 16 – F.07 90 12 55×4 17 15 70 9 M8x20 80
125 Reduced 100 200 120 250 22 153 210 8 x 18 16 – F.10 125 12 70×4 22 18 102 11 M10x25 80
Pos. Denomination Pcs Mat.
1 Body 1 AISI 304L – 316L
2 Ball 1 AISI 304L – 316L
3 Sleeves 2 AISI 304L – 316L
4 Stem 1 AISI 304L – 316L
5 Flanges 2 AISI 304L – 316L – Aq
6 Ball seals 2 PTFE
7 Sleeve seals 2 PTFE
8 Stem seal 1 PTFE
9 Stem seal 1 PTFE
10 Stem OR-seal 1 FKM
11 Register ring 1 AISI 304L (303)
12 Locknut 1 AISI 303
