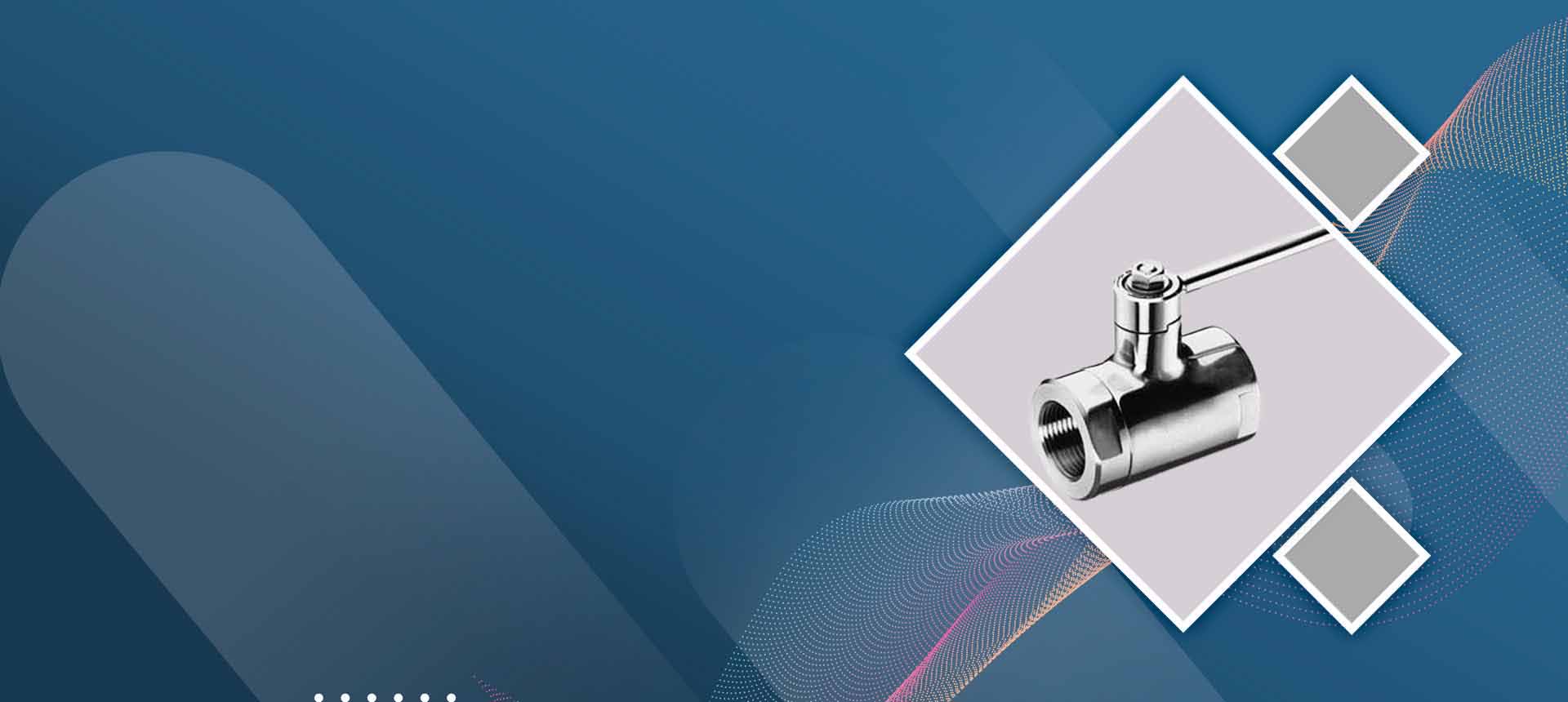

Stainless Steel 316 SCR END 2 PC Ball Valves, SS SCR END 2 PC Ball Valves, Stainless Steel 2 Piece Ball Valves, SS 304 SCR END 2 PC Ball Valves Manufacturer, Supplier in India.
Stilonn is a renowned trader of SCR END 2 PC Ball Valves, which are mostly used in refineries and other piping related industries. Stainless Steel SCR END 2 PC Ball Valves is widely used in heavy gauge welded components and weld annealing is only required where the material is for use in high stress environments. Characteristically, due to the combination of relatively high contents of chromium, nickel, molybdenum and copper, Stainless Steel 304 SCR END 2 PC Ball Valves has good resistance to general corrosion, particularly in sulfuric and phosphoric conditions. We never compromise with the product quality and processed our products like Stainless Steel 316 SCR END 2 PC Ball Valves using the best techniques.
Stainless Steel 304 SCR END 2 PC Ball Valves , Stainless Steel SCR END 2 PC Ball Valves, SS SCR END 2 PC Ball Valves, SCR END 2 PC Ball Valves , SS UNS S31600 SCR END 2 PC Ball Valves , 2 Way Ball Valve Suppliers in Mumbai, India.
Stainless Steel 304L SCR END 2 PC Ball Valves is often used in Nuclear industry, Offshore oil and gas production industry, Food & beverage industry, Petroleum industry, Petrochemical industry, Chemical industry, Fertilizer industry, Desalination plant, and more. We are catering a qualitative range of Stainless Steel 316L SCR END 2 PC Ball Valves which is available in various grades and are available in different sizes. Owing to its durable performance and corrosion resistance, these SS SCR END 2 PC Ball Valves are widely recommended by various numbers of clients. Gained prominence as an eminent supplier, exporter, trader and importer, we are engrossed in offering our clients with SS 304 SCR END 2 PC Ball Valves, which has features like Longer life service, Sturdy nature, Flawless finish, and more.
Stainless Steel DIN 1.4301 SCR END 2 PC Ball Valves , Stainless Steel DIN 1.4401 SCR END 2 PC Ball Valves , Two-way ball valve, 2 Piece Design Ball Valve SCR End Stockist.
Scr End 2 Pc Ball Valves Features
- Drive : ISO 5211 - DIN 3337 flange for actuator
- Connection : ISO 228 female/female thread
- Flow : full
- Material : Aisi 304 e 316
- Measure : from 1/4” to 4”
- Seals : virgin P.T.F.E.
- Operating Temperature : -20°C +160°C
- Outer Finish : Polished
- Drive : ISO 5211 - DIN 3337 flange for actuator
- Connection : CLAMP normative DIN 32676 TAB.4 REIHE C
- Flow : full and reduced
- Material : Aisi 304 e 316
- Measure : from 1/2” to 4”
- Seals : virgin P.T.F.E.
- Operating Temperature : -20°C +160°C
- Outer Finish : Polished
Dimensions of Scr End 2 Pc Ball Valves
| G (ISO 228) | DN | L | I | C | H | PN | Kg |
| 1/4″ | 9 | 52 | 13 | 110 | 50 | 64 | 0,34 |
| 3/8″ | 10 | 52 | 13 | 110 | 50 | 64 | 0,32 |
| 1/2″ | 15 | 62 | 15 | 110 | 55 | 64 | 0,44 |
| 3/4″ | 20 | 72 | 17 | 110 | 60 | 64 | 0,62 |
| 1″ | 25 | 82 | 19 | 160 | 65 | 40 | 1,10 |
| 1″1/4 | 32 | 92 | 19 | 160 | 70 | 40 | 1,35 |
| 1″1/2 | 40 | 104 | 20 | 190 | 80 | 40 | 2,33 |
| 2″ | 50 | 116 | 20 | 190 | 90 | 25 | 3,42 |
| 2″1/2 | 65 | 128 | 20 | 220 | 110 | 25 | 5,75 |
| 3″ | 80 | 150 | 24 | 285 | 130 | 25 | 8,98 |
| 4″ | 100 | 178 | 26 | 310 | 150 | 25 | 15,50 |
| Pos. | Denomination | Pcs | Mat. |
| 1 | Body | 1 | AISI 304L – 316L |
| 2 | Ball | 1 | AISI 304L – 316L |
| 3 | Sleeves | 2 | AISI 304L – 316L |
| 4 | Stem | 1 | AISI 304L – 316L |
| 5 | Ball seals | 2 | PTFE |
| 6 | Sleeve seals | 2 | PTFE |
| 7 | Stem seal | 1 | PTFE |
| 8 | Stem seal | 1 | PTFE |
| 9 | Stem OR-seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 304L |
| 11 | Nut | 1 | AISI 304L |
| 12 | Washer | 1 | AISI 304L |
| 13 | Lever | 1 | AISI 304L |
| 14 | Handle | 1 | Resina |
Dimensions of Scr End 2 Pc Ball Valves
| G | DN | L | I | H | PN | Kg | ISO-DIN | Ø a | b | Ø cxo | ? | d | e | f | n°4 bolts | Nm |
| 1/4″ | 9 | 52 | 13 | 39 | 64 | 0,35 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 5 |
| 1/4″ | 9 | 52 | 13 | 39 | 64 | 0,39 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 5 |
| 3/8″ | 10 | 52 | 13 | 39 | 64 | 0,34 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 5 |
| 3/8″ | 10 | 52 | 13 | 39 | 64 | 0,38 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 5 |
| 1/2″ | 15 | 62 | 15 | 41,5 | 64 | 0,45 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 8 |
| 1/2″ | 15 | 62 | 15 | 41,5 | 64 | 0,50 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 8 |
| 3/4″ | 20 | 72 | 17 | 45 | 64 | 0,66 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 12 |
| 3/4″ | 20 | 72 | 17 | 45 | 64 | 0,68 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 12 |
| 1″ | 25 | 82 | 19 | 51,5 | 40 | 0,90 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 15 |
| 1″ | 25 | 82 | 19 | 51,5 | 40 | 0,95 | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 15 |
| 1″1/4 | 32 | 92 | 19 | 56,5 | 40 | 1,30 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 18 |
| 1″1/4 | 32 | 92 | 19 | 56,5 | 40 | 1,34 | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 18 |
| 1″1/2 | 40 | 104 | 20 | 76 | 40 | 2,31 | F.05 | 65 | 12 | 35X4 | 14 | 13 | 50 | 7 | M6X20 | 25 |
| 1″1/2 | 40 | 104 | 20 | 76 | 40 | 2,48 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 25 |
| 2″ | 50 | 116 | 20 | 84 | 25 | 3,40 | F.05 | 65 | 12 | 35×4 | 14 | 13 | 50 | 7 | M6x20 | 30 |
| 2″ | 50 | 116 | 20 | 84 | 25 | 3,56 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 30 |
| 2″1/2 | 65 | 128 | 20 | 94,5 | 25 | 5,75 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 45 |
| 2″1/2 | 65 | 128 | 20 | 94,5 | 25 | 6,25 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 45 |
| 3″ | 80 | 150 | 24 | 106 | 25 | 8,93 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 70 |
| 3″ | 80 | 150 | 24 | 106 | 25 | 9,43 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 70 |
| 4″ | 100 | 178 | 26 | 120 | 25 | 14,80 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 80 |
| 4″ | 100 | 178 | 26 | 120 | 25 | 15,70 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 80 |
| Pos. | Denomination | Pcs | Mat. |
| 1 | Body | 1 | AISI 304L – 316L |
| 2 | Ball | 1 | AISI 304L – 316L |
| 3 | Sleeves | 2 | AISI 304L – 316L |
| 4 | Stem | 1 | AISI 304L – 316L |
| 5 | Ball seals | 2 | PTFE |
| 6 | Sleeve seals | 2 | PTFE |
| 7 | Stem seal | 1 | PTFE |
| 8 | Stem seal | 1 | PTFE |
| 9 | Stem OR-seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 304L (303) |
| 11 | Locknut | 1 | AISI 303 |
