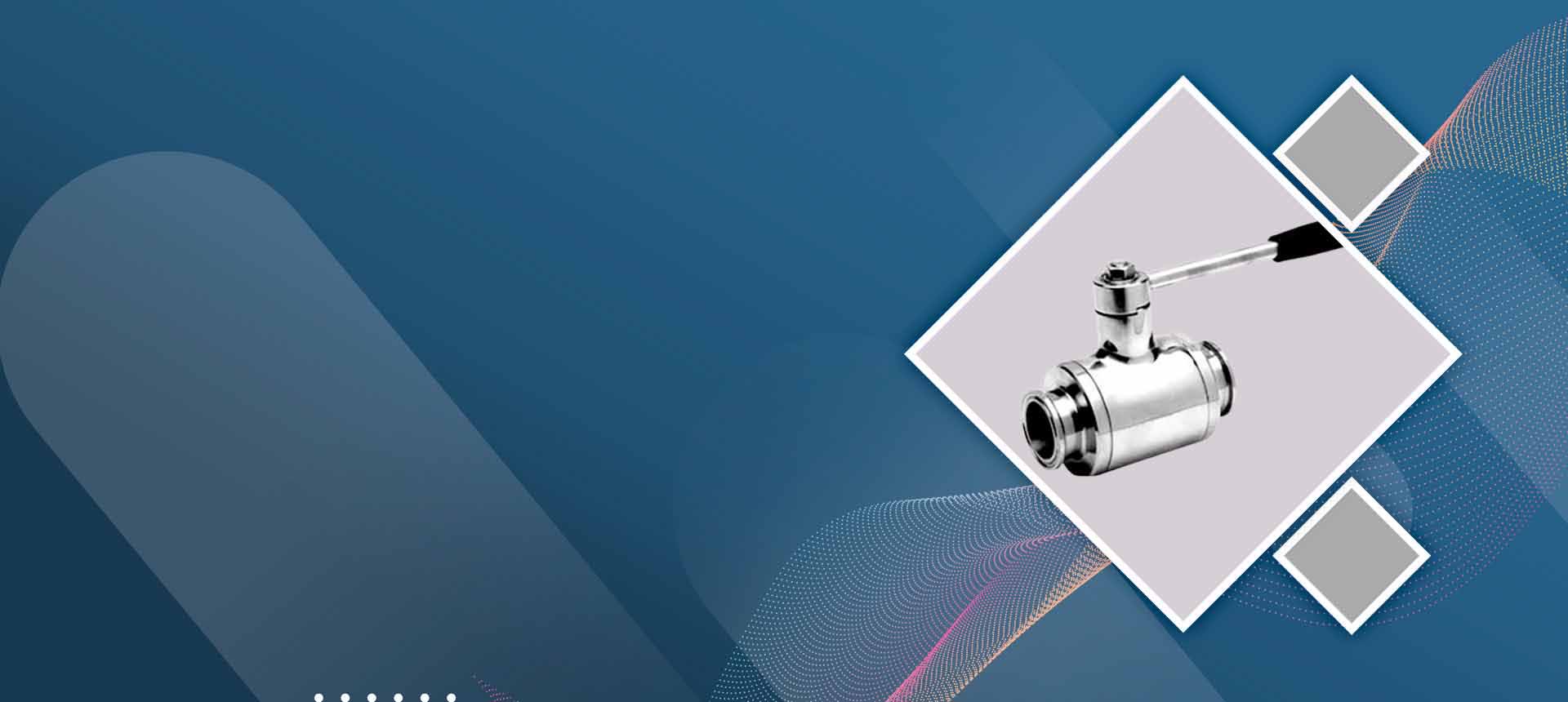

Stilonn is a renowned distributor of TC END 2 PC Ball Valves. Valves are used in many industries, engineering, manufacturing and other industries. So choosing a right kind of Stainless Steel TC END 2 PC Ball Valves is necessary for the success of your process. Stainless Steel 304L TC END 2 PC Ball Valves are specially designed according to customers demand and are offered in various forms like round, rectangular, square, coil and U-Shape. These stainless steel balls have many features including resistance to stress corrosion cracking and crevice corrosion, no effect of local pitting, excellent resistance to reducing as well as oxidizing acids, good weldability, excellent resistance in oxidation and other climatic condition and many more. Stainless Steel 304 TC END 2 PC Ball Valves are appreciated among many countries and by many clients.
CLAMP OD | DN | L | Ø A | Ø B | C | H | PN | Kg |
1/2″ | 10 | 88 | 25 | 9,4 | 110 | 50 | 64 | 0,43 |
3/4″ | 15 | 92 | 25 | 15,75 | 110 | 55 | 64 | 0,52 |
1″ | 20 | 102 | 50,5 | 22,1 | 110 | 60 | 64 | 0,93 |
1″ | 25 | 106 | 50,5 | 22,1 | 160 | 65 | 40 | 1,35 |
1″1/2 | 32 | 112 | 50,5 | 34,8 | 160 | 70 | 40 | 1,42 |
1″1/2 | 40 | 126 | 50,5 | 34,8 | 190 | 80 | 40 | 2,43 |
2″ | 40 | 126 | 64 | 47,5 | 190 | 80 | 40 | 2,42 |
2″ | 50 | 136 | 64 | 47,5 | 190 | 90 | 25 | 3,51 |
2″1/2 | 65 | 154 | 77,5 | 60,2 | 220 | 110 | 25 | 5,80 |
3″ | 80 | 184 | 91 | 72,9 | 285 | 130 | 25 | 9,00 |
4″ | 100 | 190 | 119 | 97,38 | 310 | 150 | 25 | 13,60 |
Pos. | Denomination | Pcs | Mat. |
1 | Body | 1 | AISI 316L |
2 | Ball | 1 | AISI 316L |
3 | Sleeves | 2 | AISI 316L |
4 | Stem | 1 | AISI 316L |
5 | Ball seals | 2 | PTFE |
6 | Sleeve seals | 2 | PTFE |
7 | Stem seal | 1 | PTFE |
8 | Stem seal | 1 | PTFE |
9 | Stem OR-seal | 1 | FKM |
10 | Register ring | 1 | AISI 304L (303) |
11 | Nut | 1 | AISI 304L |
12 | Washer | 1 | AISI 304L |
13 | Lever | 1 | AISI 304L |
14 | Handle | 1 | Resina |
CLAMP OD | DN | L | Ø A | Ø B | H | PN | Kg | ISO-DIN | diam_aa | b | Ø cxo | ? | d | e | f | n°4 bolts | Nm |
1/2″ | 10 | 88 | 25 | 9,4 | 39 | 64 | 0,44 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 5 |
1/2″ | 10 | 88 | 25 | 9,4 | 39 | 64 | 0,46 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 5 |
3/4″ | 15 | 92 | 25 | 15,75 | 41,5 | 64 | 0,50 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 8 |
3/4″ | 15 | 92 | 25 | 15,75 | 41,5 | 64 | 0,54 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 8 |
1″ | 20 | 102 | 50,5 | 22,1 | 45 | 64 | 0,95 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 12 |
1″ | 20 | 102 | 50,5 | 22,1 | 45 | 64 | 0,96 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 12 |
1″ | 25 | 106 | 50,5 | 22,1 | 51,5 | 40 | 1,31 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 15 |
1″ | 25 | 106 | 50,5 | 22,1 | 51,5 | 40 | 1,36 | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 15 |
1″1/2 | 32 | 112 | 50,5 | 34,8 | 56,5 | 40 | 1,42 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 18 |
1″1/2 | 32 | 112 | 50,5 | 34,8 | 56,5 | 40 | 1,49 | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 18 |
1″1/2 | 40 | 126 | 50,5 | 34,8 | 76 | 40 | 2,42 | F.05 | 65 | 12 | 35X4 | 14 | 13 | 50 | 7 | M6X20 | 25 |
1″1/2 | 40 | 126 | 50,5 | 34,8 | 76 | 40 | 2,57 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 25 |
2″ | 40 | 126 | 64 | 47,5 | 76 | 40 | 2,47 | F.05 | 65 | 12 | 35×4 | 14 | 13 | 50 | 7 | M6x20 | 25 |
2″ | 40 | 126 | 64 | 47,5 | 76 | 40 | 2,65 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 25 |
2″ | 50 | 136 | 64 | 47,5 | 84 | 25 | 3,44 | F.05 | 65 | 12 | 35×4 | 14 | 13 | 50 | 7 | M6x20 | 30 |
2″ | 50 | 136 | 64 | 47,5 | 84 | 25 | 3,61 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 30 |
2″1/2 | 65 | 154 | 77,5 | 60,2 | 94,5 | 25 | 5,84 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 45 |
2″1/2 | 65 | 154 | 77,5 | 60,2 | 94,5 | 25 | 6,34 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 45 |
3″ | 80 | 184 | 91 | 72,9 | 106 | 25 | 8,90 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 70 |
3″ | 80 | 184 | 91 | 72,9 | 106 | 25 | 9,40 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 70 |
4″ | 100 | 190 | 119 | 97,38 | 120 | 25 | 13,33 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 80 |
4″ | 100 | 190 | 119 | 97,38 | 120 | 25 | 13,83 | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 80 |
Pos. | Denomination | Pcs | Mat. |
1 | Body | 1 | AISI 316L |
2 | Ball | 1 | AISI 316L |
3 | Sleeves | 2 | AISI 316L |
4 | Stem | 1 | AISI 316L |
5 | Ball seals | 2 | PTFE |
6 | Sleeve seals | 2 | PTFE |
7 | Stem seal | 1 | PTFE |
8 | Stem seal | 1 | PTFE |
9 | Stem OR-seal | 1 | FKM |
10 | Register ring | 1 | AISI 304L (303) |
11 | Locknut | 1 | AISI 303 |
