Stainless Steel SMS Ball Valves, SS 316 SMS Ball Valves, SMS Ball Valves, SS UNS S31600 SMS Ball Valve, AISI 316 SMS Ball Valves, AISI 316L SMS Ball Valve, SS SMS Valves For Direct Mount Suppliers in Mumbai, India.
Stilonn is a renowned stockist of SMS Ball Valves. Do you own an industry where lots of applications are needed for the production work and you are finding the right quality of ball valves? If the answer is yes, then buying stainless steel SMS ball valves is the right option available in front of you. These ball valves are available in different shapes, sizes and dimensions are readily customized as per the needs of customers and clients. Stainless Steel SMS Ball Valves are even available in extensive variety and often used in marine applications due to their high tensile strength and high corrosion resistance properties. Moreover, they are also used in transport and production of metal pickling.
The AISI 316 SMS ball valves manufacturer provides their clients and customers best quality of valves that can easily withstand in extreme environment and temperature for a long time. These ball valves are highly appreciated for their flawless finishing, superior quality and excellent performance. They offer a varied range of SMS ball valves that are well packed in wooden cases or boxes to prevent damages and rust. Their features include resistance to corrosion, durability and high tolerance. Stainless Steel 316 SMS Ball Valves are widely used in piping applications like petrochemical industry, oil and gas industry and so on.
Stainless Steel 316 SMS Valve, SMS Ball Valves With Handle Manufacturer, SS 316L SMS Ball Valves, Stainless Steel 316L SMS Ball Valve Supplier in India.
If you buy Stainless Steel 304L SMS Ball Valves valves from a reliable exporter you will get the best quality of valves with features like optimum strength, consistency, and reliability. Furthermore, these ball valves are manufactured in adherence with national and international quality standard so as to attain the highest quality of the product. SS SMS Ball Valves are customized as per customer’s requirement and with the proper specification.
Sms Ball Valves, Stainless Steel DIN 1.4401 Sms Ball Valves, Stainless Steel DIN 1.4404 Sms Ball Valves, SMS Female Ball Valve Distributor, Stainless Steel 316 SMS Female Ball Valve Stockist.
SMS Ball Valves Features
Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids. 3-piece construction allows end connections to be permanently fitted to the pipe, so the valve body can be removed enabling replacement of seals without disturbing pipework.
SMS Ball Valves with Lever Features
- Drive : Inox lever
- Connection : SMS female/female thread
- Flow : Full
- Material : Aisi 304 - 316
- Measure : from DN 10 to DN 100
- Seals : virgin P.T.F.E.
- Operating Temperature : -20°C +160°C
- Outer Finish : Polished
- Seals made of : P.T.F.E. with glass, P.T.F.E. with carbographite, High-molecular weight polyethylene.
- Drive : ISO 5211 - DIN 3337 flange for actuator
- Connection : SMS female/female
- Flow : Full
- Material : Aisi 304 - 316
- Measure : from DN 10 to DN 100
- Seals : virgin P.T.F.E.
- Operating Temperature : -20°C +160°CC
- Outer Finish : Polished (Screws for mounting actuator included )
- Seals made of : P.T.F.E. with glass, P.T.F.E. with carbographite, High-molecular weight polyethylene
Dimensions of SMS Ball Valves with Lever
| DN | SMS | Rd | L | I | C | H | PN | Kg |
| 25 | 25 | 40 x 1/6″ | 106 | 19 | 160 | 65 | 40 | – |
| 40 | 38 | 60 x 1/6″ | 126 | 19 | 190 | 80 | 40 | – |
| 50 | 51 | 70 x 1/6″ | 136 | 20 | 190 | 90 | 25 | – |
| 65 | 63 | 85 x 1/6″ | 154 | 22 | 235 | 110 | 25 | – |
| 65 * | 76 | 98 x 1/6″ | 154 | 22 | 220 | 110 | 25 | – |
| 80 | 76 | 98 x 1/6″ | 184 | 27 | 285 | 130 | 25 | – |
| 100 | 104 | 125 x 1/4″ | 190 | 28 | 310 | 150 | 25 | – |
| 100 | 101 | 132 x 1/6″ | 190 | 28 | 310 | 150 | 25 | – |

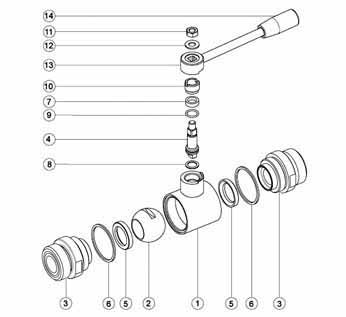

| Pos. | Denomination | Pcs | Mat. |
| 1 | Body | 1 | AISI 304L – 316L |
| 2 | Ball | 1 | AISI 304L – 316L |
| 3 | Sleeves | 2 | AISI 304L – 316L |
| 4 | Stem | 1 | AISI 304L – 316L |
| 5 | Ball seals | 2 | PTFE |
| 6 | Sleeve seals | 2 | PTFE |
| 7 | Stem seal | 1 | PTFE |
| 8 | Stem seal | 1 | PTFE |
| 9 | Stem OR-seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 304L (303) |
| 11 | Nut | 1 | AISI 304L |
| 12 | Washer | 1 | AISI 304L |
| 13 | Lever | 1 | AISI 304L |
| 14 | Handle | 1 | Resina |
Dimensions of SMS Female Ball Valves
| DN | SMS | Rd | L | I | H | PN | Kg | ISO-DIN | Ø a | b | Ø c x o | SQ | d | e | f | n°4 bolts | Nm |
| 20* | 25 | 40 x 1/6″ | 102 | 19 | 45 | 64 | – | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 12 |
| 20* | 25 | 40 x 1/6″ | 102 | 19 | 45 | 64 | – | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 12 |
| 25 | 25 | 40 x 1/6″ | 106 | 19 | 51,5 | 40 | – | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 15 |
| 25 | 25 | 40 x 1/6″ | 106 | 19 | 51,5 | 40 | – | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 15 |
| 40 | 38 | 60 x 1/6″ | 126 | 19 | 76 | 40 | – | F.05 | 65 | 12 | 35×4 | 14 | 13 | 50 | 7 | M6x20 | 25 |
| 40 | 38 | 60 x 1/6″ | 126 | 19 | 76 | 40 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 25 |
| 50 | 51 | 70 x 1/6″ | 136 | 20 | 84 | 25 | – | F.05 | 65 | 12 | 35X4 | 14 | 13 | 50 | 7 | M6X20 | 25 |
| 50 | 51 | 70 x 1/6″ | 136 | 20 | 84 | 25 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 25 |
| 65 | 63 | 85 x 1/6″ | 154 | 22 | 94.5 | 25 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 30 |
| 65 | 63 | 85 x 1/6″ | 154 | 22 | 94.5 | 25 | – | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 30 |
| 65 * | 76 | 98 x 1/6″ | 154 | 22 | 94,5 | 25 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 45 |
| 65 * | 76 | 98 x 1/6″ | 154 | 22 | 94,5 | 25 | – | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 45 |
| 80 | 76 | 98 x 1/6″ | 184 | 27 | 106 | 25 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 70 |
| 80 | 76 | 98 x 1/6″ | 184 | 27 | 106 | 25 | – | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 70 |
| 100 | 104 | 125 x 1/4″ | 190 | 28 | 120 | 25 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 80 |
| 100 | 104 | 125 x 1/4″ | 190 | 28 | 120 | 25 | – | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 80 |
| 100 | 101 | 132 x 1/6″ | 190 | 28 | 120 | 25 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 80 |
| 100 | 101 | 132 x 1/6″ | 190 | 28 | 120 | 25 | – | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 80 |
| Pos. | Denomination | Pcs | Mat. |
| 1 | Body | 1 | AISI 304L – 316L |
| 2 | Ball | 1 | AISI 304L – 316L |
| 3 | Sleeves | 2 | AISI 304L – 316L |
| 4 | Stem | 1 | AISI 304L – 316L |
| 5 | Ball seals | 2 | PTFE |
| 6 | Sleeve seals | 2 | PTFE |
| 7 | Stem seal | 1 | PTFE |
| 8 | Stem seal | 1 | PTFE |
| 9 | Stem OR-seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 304L (303) |
| 11 | Locknut | 1 | AISI 303 |
