Stainless Steel NPT Ball Valves, SS 316 NPT Ball Valves, NPT Ball Valves, SS UNS S31600 NPT Ball Valves, AISI 316 NPT Ball Valves, AISI 316L NPT Ball Valves, SS Ball Valves For Direct Mount Suppliers in Mumbai, India.
Stilonn is a renowned manufacturer and exporter of NPT Ball Valves, which are offered in varied diametric thickness. Stainless Steel NPT Ball Valves is often used in seawater, brackish water, condensers, heat exchangers, and pipe work in general Paper and allied industries, Gas washing, Chemical and pharmaceutical industries. These Stainless Steel 304 NPT Ball Valves have been sourced from the certified specialists to ensure that they are with accordance to the industry standards. With pickling, annealing, bright and sand blast surface, Stainless Steel 316 NPT Ball Valves connects pipes ideally leaving no risk of leakage. These Stainless Steel 304L NPT Ball Valves are offered in various sizes and dimensions and can also be customized as per the needs of the client.
Stainless Steel 316 Heavy Ball Valves NPT Thread, NPT Ball Valves With Handle Manufacturer, SS 316L Female NPT Ball Valves, Stainless Steel 316L NPT Ball Valve Supplier in India.
Table of Contents
- NPT Ball Valves Features
- NPT Ball Valves with Lever Features
- NPT Ball Valves with Flange for Actuator Features
- Dimensions of Stainless Steel NPT Ball Valves with Lever
- Dimensions of Stainless Steel NPT Ball Valves with Flange for Actuator
- Surplus Stock & Special Offer On NPT Ball Valves
- NPT Ball Valves Supply Destination
- NPT Ball Valves Export Destination Worldwide
- NPT Ball Valves Popular Searches
We excel in offering a wide range of Stainless Steel 316L NPT Ball Valves, which are exclusively engineered by implementing best available technologies. These SS NPT Ball Valves have a higher rate of efficiency and accuracy owing to the best quality raw material used at the time of production. With our main focus on the varying demands of our clients, we are engaged in manufacturing, exporting, wholesaling, retailing and trading SS 304 NPT Ball Valves, which has features like High grade quality, Superior in performance, Affordable prices, and more. These SS 316 NPT Ball Valves find their suitable usage in automotive industry, aerospace, engineering and transportation for designing bus bodies, electronic parts, fuel tanks and light weight structural parts.
Stainless Steel Locking Handle NPT Ball Valves, Stainless Steel DIN 1.4401 NPT Ball Valves, Stainless Steel DIN 1.4404 High Tolerance NPT Ball Valves, High Pressure NPT Ball Valves Distributor, National Pipe Taper Ball Valves Stockist.
NPT Ball Valves Features
Virtually no head loss and a superior performer with mildly abrasive as well as corrosive fluids. Ideal for in-line control of process fluids. 3-piece construction allows end connections to be permanently fitted to the pipe, so the valve body can be removed enabling replacement of seals without disturbing pipework.
NPT Ball Valves with Lever Features
- Drive : Inox lever
- Connection : NPT female/female thread
- Flow : Full
- Material : Aisi 316
- Measure : from 1/4” to 4”
- Seals : virgin P.T.F.E.
- Operating Temperature : -20°C +160°C
- Outer Finish : Polished
- Seals made of : P.T.F.E. with glass, P.T.F.E. with carbographite, High-molecular weight polyethylene.
NPT Ball Valves with Flange for Actuator Features
- Drive : ISO 5211 - DIN 3337 flange for actuator
- Connection : NPT female/female thread
- Flow : Full
- Material : Aisi 316L
- Measure : from 1/4” to 4”
- Seals : virgin P.T.F.E.
- Operating Temperature : -20°C +160°C
- Outer Finish : Polished (Screws for mounting actuator included )
- Seals made of : P.T.F.E. with glass, P.T.F.E. with carbographite, High-molecular weight polyethylene.
Dimensions of Stainless Steel NPT Ball Valves with Lever
| G | DN | LL | I | C | H | PN | Kg |
| 1/4″ | 9 | 52 | 13 | 110 | 50 | 64 | 0,34 |
| 3/8″ | 10 | 52 | 13 | 110 | 50 | 64 | 0,32 |
| 1/2″ | 15 | 62 | 16 | 110 | 55 | 64 | 0,44 |
| 3/4″ | 20 | 72 | 18 | 110 | 60 | 64 | 0,62 |
| 1″ | 25 | 82 | 19 | 160 | 65 | 40 | 1,10 |
| 1″1/4 | 32 | 92 | 20 | 160 | 70 | 40 | 1,35 |
| 1″1/2 | 40 | 104 | 20 | 190 | 80 | 40 | 2,33 |
| 2″ | 50 | 116 | 20 | 190 | 90 | 25 | 3,42 |
| 2″1/2 | 65 | 136 | 26 | 220 | 110 | 25 | – |
| 3″ | 80 | 160 | 28 | 285 | 130 | 25 | – |
| 4″ | 100 | 192 | 30 | 310 | 150 | 25 | – |

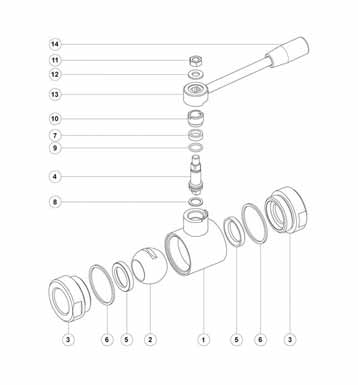

| Pos. | Denomination | Pcs | Mat. |
| 1 | Body | 1 | AISI 316L |
| 2 | Ball | 1 | AISI 316L |
| 3 | Sleeves | 2 | AISI 316L |
| 4 | Stem | 1 | AISI 316L |
| 5 | Ball seals | 2 | PTFE |
| 6 | Sleeve seals | 2 | PTFE |
| 7 | Stem seal | 1 | PTFE |
| 8 | Stem seal | 1 | PTFE |
| 9 | Stem OR-seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 304L (303) |
| 11 | Nut | 1 | AISI 304L |
| 12 | Washer | 1 | AISI 304L |
| 13 | Lever | 1 | AISI 304L |
| 14 | Handle | 1 | Resina |
Dimensions of Stainless Steel NPT Ball Valves with Flange for Actuator
| G | DN | L | I | H | PN | Kg | ISO-DIN | Ø a | b | Ø cxo | SQ | d | e | f | n°4 bolts | Nm |
| 1/4″ | 9 | 52 | 13 | 39 | 64 | 0,35 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 5 |
| 1/4″ | 9 | 52 | 13 | 39 | 64 | 0,39 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 5 |
| 3/8″ | 10 | 52 | 13 | 39 | 64 | 0,34 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 5 |
| 3/8″ | 10 | 52 | 13 | 39 | 64 | 0,38 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 5 |
| 1/2″ | 15 | 62 | 16 | 41,5 | 64 | 0,45 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 8 |
| 1/2″ | 15 | 62 | 16 | 41,5 | 64 | 0,50 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 8 |
| 3/4″ | 20 | 72 | 18 | 45 | 64 | 0,66 | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x16 | 12 |
| 3/4″ | 20 | 72 | 18 | 45 | 64 | 0,68 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 12 |
| 1″ | 25 | 82 | 19 | 51,5 | 40 | 0,90 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 15 |
| 1″ | 25 | 82 | 19 | 51,5 | 40 | 0,95 | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 15 |
| 1″1/4 | 32 | 92 | 20 | 56,5 | 40 | 1,30 | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 18 |
| 1″1/4 | 32 | 92 | 20 | 56,5 | 40 | 1,34 | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 18 |
| 1″1/2 | 40 | 104 | 20 | 76 | 40 | 2,31 | F.05 | 65 | 12 | 35X4 | 14 | 13 | 50 | 7 | M6X20 | 25 |
| 1″1/2 | 40 | 104 | 20 | 76 | 40 | 2,48 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 25 |
| 2″ | 50 | 116 | 20 | 84 | 25 | 3,40 | F.05 | 65 | 12 | 35×4 | 14 | 13 | 50 | 7 | M6x20 | 30 |
| 2″ | 50 | 116 | 20 | 84 | 25 | 3,56 | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 30 |
| 2″1/2 | 65 | 136 | 26 | 94,5 | 25 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 45 |
| 2″1/2 | 65 | 136 | 26 | 94,5 | 25 | – | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 45 |
| 3″ | 80 | 160 | 28 | 106 | 25 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 70 |
| 3″ | 80 | 160 | 28 | 106 | 25 | – | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 70 |
| 4″ | 100 | 192 | 30 | 120 | 25 | – | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 80 |
| 4″ | 100 | 192 | 30 | 120 | 25 | – | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 80 |
| Pos. | Denomination | Pcs | Mat. |
| 1 | Body | 1 | AISI 316L |
| 2 | Ball | 1 | AISI 316L |
| 3 | Sleeves | 2 | AISI 316L |
| 4 | Stem | 1 | AISI 316L |
| 5 | Ball seals | 2 | PTFE |
| 6 | Sleeve seals | 2 | PTFE |
| 7 | Stem seal | 1 | PTFE |
| 8 | Stem seal | 1 | PTFE |
| 9 | Stem OR-seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 304L (303) |
| 11 | Locknut | 1 | AISI 303 |
