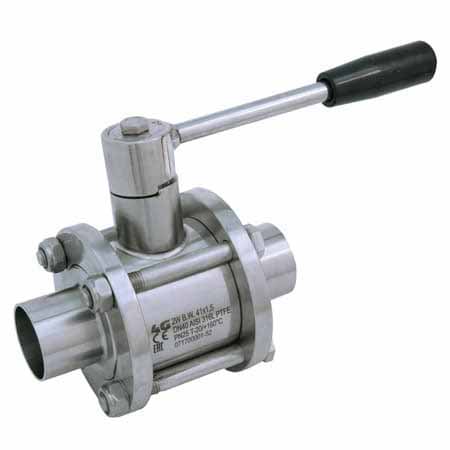

Stilonn is a renowned manufacturer and supplier of Butt Weld 3PC Ball Valves, which are mostly used in refineries and other piping related industries. Also, our clients can avail these Stainless Steel Butt Weld 3PC Ball Valves in round, square, rectangular or coir shaped. We are one of the leading supplier stockist and exporters of SS Butt Weld 3PC Ball Valves, which are available in all standard sizes and designs. Offered Stainless Steel 304 Butt Weld 3PC Ball Valves are widely acknowledged by our clients for their high strength and corrosion-free features. From the years of commencement, we are engaged in offering a huge assortment of quality approved Stainless Steel 304L Butt Weld 3PC Ball Valves, which is known for its excellent performance and is developed using advance technology.

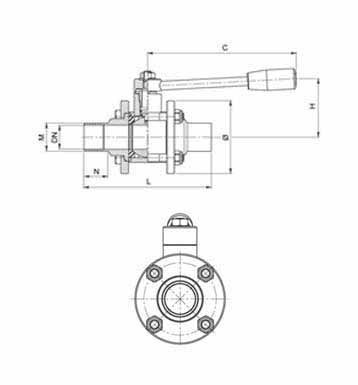

DN | L | C | H | N | M | Ø | BOLTS MEASURES | TIGHTENING (Nm) | PN |
15 | 95 | 110 | 55 | 20 | 12,7 x 1,5 | 55 | 6 x 45 | 4 | 64 |
15 | 95 | 110 | 55 | 20 | 19,05 x 1,65 | 55 | 6 x 45 | 4 | 64 |
20 | 106 | 110 | 60 | 22 | 25,4 x 1,65 | 60 | 6 x 50 | 4 | 40 |
25 | 118 | 160 | 70 | 22 | 25,4 x 1,65 | 75 | 8 x 65 | 8 | 40 |
32 | 126 | 160 | 80 | 23 | 38,1 x 1,65 | 85 | 8 x 70 | 10 | 25 |
40 | 145 | 190 | 95 | 25 | 38,1 x 1,65 | 100 | 10 x 90 | 12 | 25 |
50 | 165 | 190 | 100 | 25 | 50,8 x 1,65 | 120 | 10 x 100 | 13 | 25 |
65 | 191 | 235 | 110 | 27 | 63,5 x 1,65 | 140 | 10 x 120 | 20 | 25 |
80 | 208 | 285 | 130 | 27 | 76,1 x 2 | 165 | 10 x 140 | 20 | 16 |
100 | 230 | 310 | 150 | 27 | 101,6 x 2,11 | 200 | 12 x 170 | 22 | 16 |
Pos. | Denomination | Pcs | Mat. |
1 | Body | 1 | AISI 304L-316L |
2 | Ball | 1 | AISI 304L-316L |
3 | Sleeves | 2 | AISI 304L-316L |
4 | Flanges for sleeves | 2 | AISI 304L-316L |
5 | Stem | 2 | AISI 316L |
6 | Ball seals | 2 | PTFE |
7 | Stem seal | 1 | PTFE |
8 | Stem seal | 1 | PTFE |
9 | Stem OR-seal | 1 | FKM |
10 | Register ring | 1 | AISI 304L (303) |
11 | Stay bolt | 4 | AISI 304L |
12 | Self-clamping nut | 4 | AISI 304L |
13 | Nut | 1 | AISI 304L |
14 | Washer | 1 | AISI 304L |
15 | Lever | 1 | AISI 304L |
16 | Handle | 1 | Resina |
DN | L | H | N | M | Ø | STAY BOLTS | TIGHTENING Nm | PN | Kg | ISO-DIN | Ø a | b | Ø C x O | ? | d | e | f | n° 4 Bolts | Nm |
15 | 95 | 41,5 | 20 | 12,7 x 1,5 | 55 | 6 x 45 | 4 | 64 | — | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x14 | 7 |
15 | 95 | 41,5 | 20 | 12,7 x 1,5 | 55 | 6 x 45 | 4 | 64 | — | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x14 | 7 |
15 | 95 | 41,5 | 20 | 19,05 x 1,65 | 55 | 6 x 45 | 4 | 64 | — | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x14 | 7 |
15 | 95 | 41,5 | 20 | 19,05 x 1,65 | 55 | 6 x 45 | 4 | 64 | — | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x14 | 7 |
20 | 106 | 45 | 22 | 25,4 x 1,65 | 60 | 6 x 50 | 4 | 40 | — | F.03 | 46 | 9 | 25×3 | 9 | 8 | 36 | 6 | M5x14 | 10 |
20 | 106 | 45 | 22 | 25,4 x 1,65 | 60 | 6 x 50 | 4 | 40 | — | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x14 | 10 |
25 | 118 | 51,5 | 22 | 25,4 x 1,65 | 75 | 8 x 65 | 8 | 40 | — | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 18 |
25 | 118 | 51,5 | 22 | 25,4 x 1,65 | 75 | 8 x 65 | 8 | 40 | — | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 18 |
32 | 126 | 56,5 | 23 | 38,1 x 1,65 | 85 | 8 x 70 | 10 | 25 | — | F.04 | 54 | 9 | 30×3 | 11 | 10 | 42 | 6 | M5x16 | 20 |
32 | 126 | 56,5 | 23 | 38,1 x 1,65 | 85 | 8 x 70 | 10 | 25 | — | F.05 | 65 | 9 | 35×3 | 14 | 13 | 50 | 7 | M6x16 | 20 |
40 | 145 | 74 | 25 | 38,1 x 1,65 | 100 | 10 x 90 | 12 | 25 | — | F.05 | 65 | 12 | 35X4 | 14 | 13 | 50 | 7 | M6X20 | 25 |
40 | 145 | 74 | 25 | 38,1 x 1,65 | 100 | 10 x 90 | 12 | 25 | — | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 25 |
50 | 165 | 82 | 25 | 50,8 x 1,65 | 120 | 10 x 100 | 13 | 25 | — | F.05 | 65 | 12 | 35X4 | 14 | 13 | 50 | 7 | M6X20 | 35 |
50 | 165 | 82 | 25 | 50,8 x 1,65 | 120 | 10 x 100 | 13 | 25 | — | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 35 |
65 | 191 | 94,5 | 27 | 63.5 x 1,65 | 140 | 10 x 120 | 20 | 25 | — | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 45 |
65 | 191 | 94,5 | 27 | 63.5 x 1,65 | 140 | 10 x 120 | 20 | 25 | — | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 45 |
80 | 208 | 106 | 27 | 76,1 x 2 | 165 | 10 x 140 | 20 | 16 | — | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 60 |
80 | 208 | 106 | 27 | 76,1 x 2 | 165 | 10 x 140 | 20 | 16 | — | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 60 |
100 | 230 | 120 | 27 | 101,6 x 2,11 | 200 | 12 x 170 | 22 | 16 | — | F.07 | 90 | 12 | 55×4 | 17 | 15 | 70 | 9 | M8x20 | 90 |
100 | 230 | 120 | 27 | 101,6 x 2,11 | 200 | 12 x 170 | 22 | 16 | — | F.10 | 125 | 12 | 70×4 | 22 | 18 | 102 | 11 | M10x25 | 90 |
Pos. | Denomination | Pcs | Mat. |
1 | Body | 1 | AISI 316L |
2 | Ball | 1 | AISI 316L |
3 | Sleeves | 2 | AISI 316L |
4 | Stem | 1 | AISI 316L |
5 | Ball seals | 2 | PTFE |
6 | Sleeve seals | 2 | PTFE |
7 | Stem seal | 1 | PTFE |
8 | Stem seal | 1 | PTFE |
9 | Stem OR-seal | 1 | FKM |
10 | Register ring | 1 | AISI 304L (303) |
11 | Locknut | 1 | AISI 303 |
